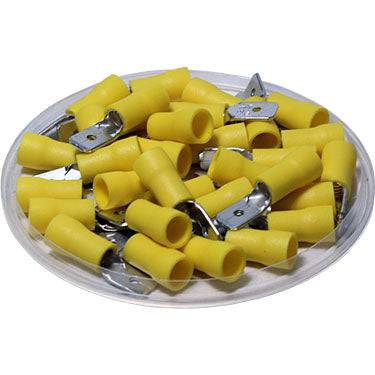

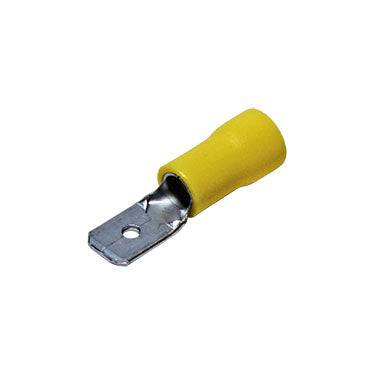

MDD5-250 - MALE - 12-10AWG Double Crimp Quick Disconnects - Vinyl

Precio original $16.45 - Precio original $16.45
Precio original
$16.45
$16.45 - $16.45
Precio actual $16.45
SKU MDD5-250
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 100 Pieces
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation.

Dimensions & Features:

Wire Size: 12-10 AWG
Color: Yellow
Terminal Material: Tin Plated Brass
Terminal Insulation: Vinyl
Voltage Rating: 600 Volts
AMP Rating: 20-24AMP
Temperature Rating: 105oC
NEMA Tab: 0.032" X 0.250" (0.8mm X 6.35mm)
L: 24.0mm (0.94")
F: 7.7mm (0.30")
W: 6.3mm (0.25")
T: 0.4mm (0.16")
B: 13.0mm (0.51")
D: 6.2mm (0.24")
C: 3.4mm (0.13")
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None:

Documents

Click to view product spec sheet:
