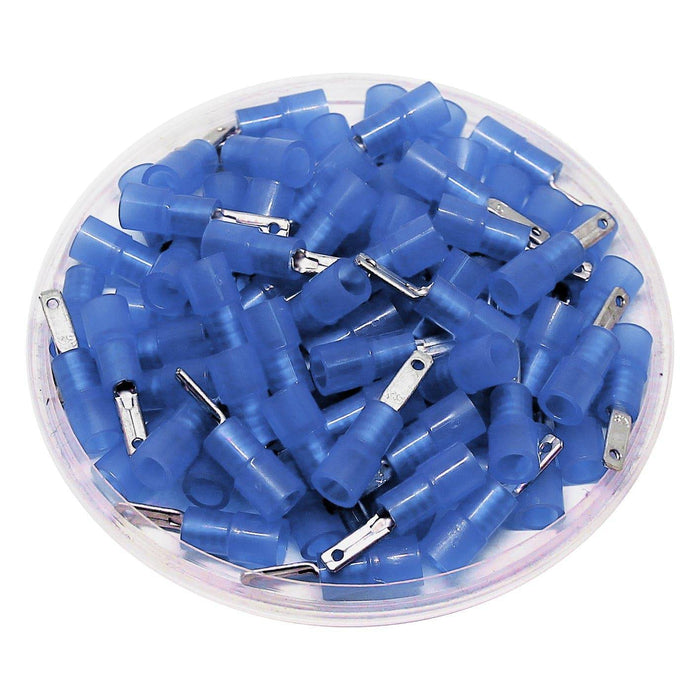

MDNY2-110(8) - Nylon Insulated Male Quick Disconnects - 16-14 AWG - Blue
Precio original
$5.18
-
Precio original
$5.18
Precio original
$5.18
$5.18
-
$5.18
Precio actual
$5.18
SKU MDNY2-110(8)
Disponibilidad:
en stock, listo para ser enviado
Non insulated quick disconnects create a splice when fitted together or can terminate a connection to a terminal block. Quick disconnects be connected or disconnected without damage to the terminal or wire. without the use of tools.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Range: | 16-14 AWG |
| T: | 0.5mm (0.02") |
| L: | 20.0mm (0.79") |
| F: | 6.5mm (0.25") |
| B: | 11.0mm (0.43") |
| W: | 2.8mm (0.11") |
| D: | 4.5mm (0.18") |
| C: | 2.3mm (0.09") |
| Nema Tab: | 0.02" X 0.11" (0.8mm X 2.8mm) |
| Terminal Material: | Tin-Plated Brass |
| Insulation Material: | Nylon |
| Voltage Rating: | 300 Volts |
| AMP Rating: | 15 AMP |
| Temp Rating: | 75oC |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
