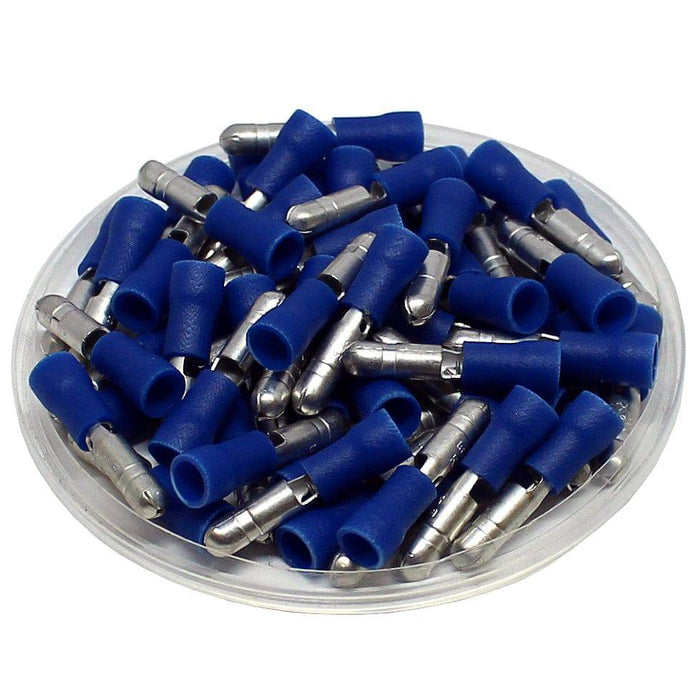

MPD2-156 - 16-14AWG Male Bullet Connector - Double Crimp
Precio original
$9.66
-
Precio original
$9.66
Precio original
$9.66
$9.66
-
$9.66
Precio actual
$9.66
SKU MPD2-156
Disponibilidad:
en stock, listo para ser enviado
Tin plated brass bullet type insulated terminals with copper sleeve on terminal barrel. Male and female fit to form a fully insulated in-line splice. This helps prevent shorting or flash-over when disconnected with power on.
Product Drawing:
None:
| Wire Range: | 16-14 AWG |
| W: | 0.16" (4.0mm) |
| F: | 0.33" (8.5mm) |
| L: | 0.85" (21.7mm) |
| B: | 0.41" (10.5mm) |
| D: | 0.18" (4.7mm) |
| T: | 0.01" (0.4mm) |
| Terminal Material: | Brass |
| Insulation Material: | Vinyl |
| Insulation Color: | Blue |
| Temperature Rating: | 105oC - 600 Volts |
| Max AMP Rating: | 15 AMP |
| UL Recgonized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
