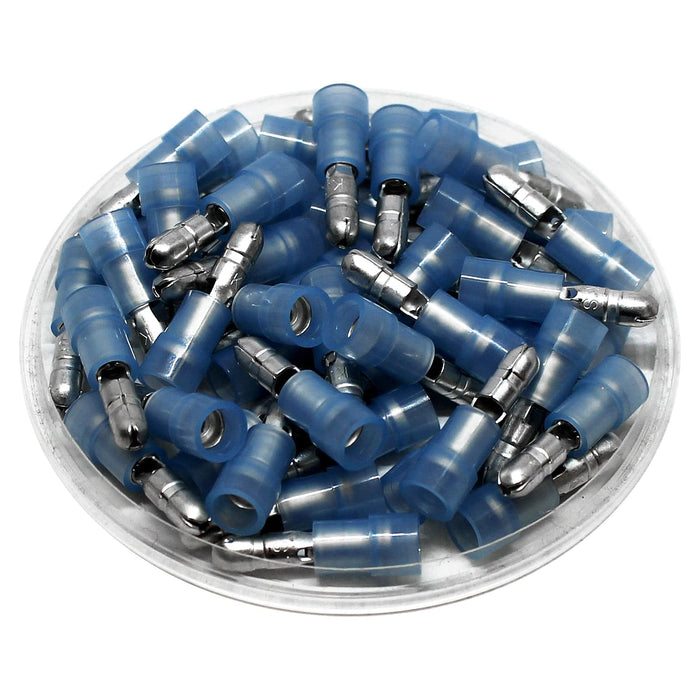

MPNY2-156 - 16-14AWG Male Bullet Connector - NYLON

Precio original $8.36 - Precio original $8.36
Precio original
$8.36
$8.36 - $8.36
Precio actual $8.36
SKU MPNY2-156
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 100 Pieces
Tin-plated brass male and female insulated bullet connectors fit to form a fully insulated in-line splice that helps prevent shorting or flash-over when disconnected with the power on.
Wire Range: 16-14 AWG
C: 0.08" (2.3mm)
L: 0.87" (22.0mm)
F: 0.34" (8.5mm)
B: 0.43" (11.0mm)
W: 0.16" (4.0mm)
D: 0.18" (4.5mm)
Terminal Material: Tin-Plated Brass
Insulation Material: Nylon
Insulation Color: Blue
Temperature Rating: 105oC
Max AMP Rating: 15 AMP
UL Recgonized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:
