Self-Adhesive Wire Clips - NC1321
Precio original
$15.75
-
Precio original
$15.75
Precio original
$15.75
$15.75
-
$15.75
Precio actual
$15.75
SKU NC1321
Disponibilidad:
en stock, listo para ser enviado

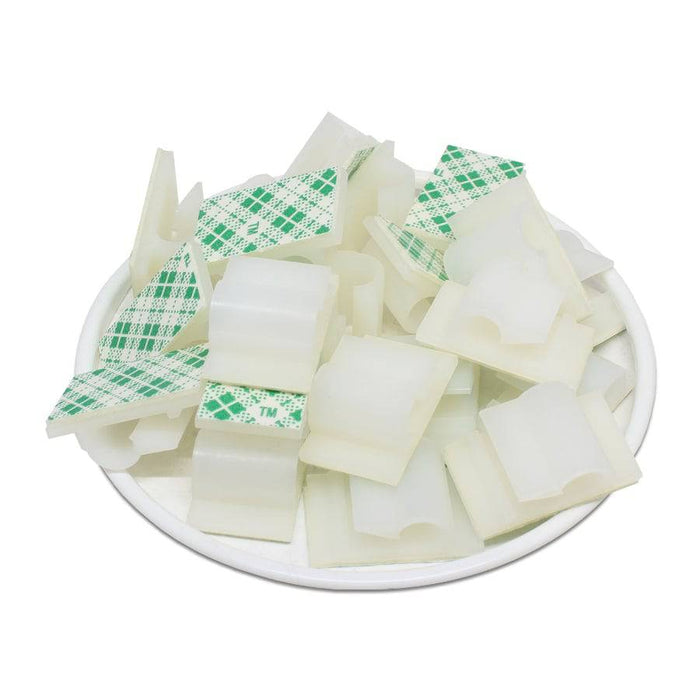

Self-adhesive wire clips are designed to secure wire bundles and large cables where fixing holes proves impractical. To secure, make sure surface where wire clip is to be applied is clean and oil-free. Remove adhesive's protective film and apply wire clip to the surface.
Dimensions & Features:
Technical Drawing:
None
Dimensions & Features:
| Color: | Natural |
| L: | 21mm (0.83") |
| L1: | 10mm (0.39") |
| L2: | 5.5mm (0.22") |
| W: | 12.8mm (0.50") |
| W1: | 12.8mm (0.50") |
| H: | 8.2mm (0.32") |
| H1: | 6.8mm (0.27") |
| Material: | UL Approved 94UV-2 Nylon 6/6 |
| Service Temperature: | -40°F to 185°F (-40°C to 85°C) |
| Flammability Rating: | V-2 |
| UL Approved: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross Reference Parts:None
