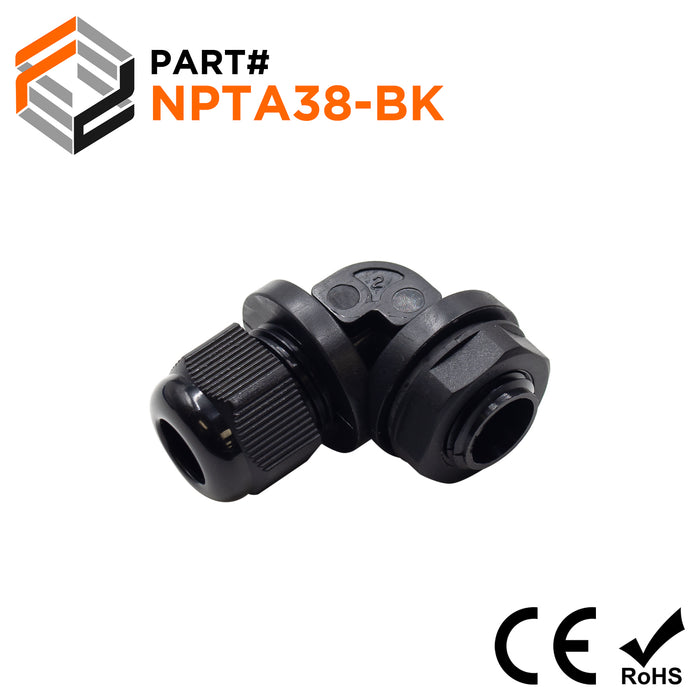

3/8" NPT Thread Nylon Cable Gland, Black, Right Angle, IP68, 5-9mm Range, - NPTA38-BK
Precio original
$1.06
-
Precio original
$1.06
Precio original
$1.06
$1.06
-
$1.06
Precio actual
$1.06
SKU NPTA38-BK
Disponibilidad:
en stock, listo para ser enviado
NYLON CABLE GLANDS: NPT THREAD
NPT (National Pipe Thread) cable glands are useful when creating water-tight pass-throughs for cables. They protect and secure cables through their internal seals. Ferrules Direct offers a wide range of NPT sizes in a variety of materials and colors. These glands are easy to use and built to handle tough conditions.

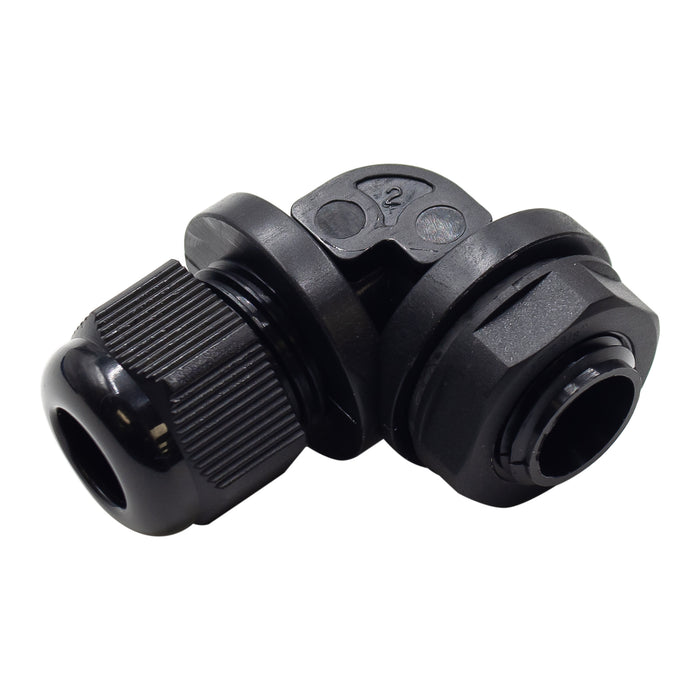

3/8" NPT Thread Right Angle Nylon Cable Gland
- Lock-nut Included ✓
- Inner Gland Seal Included ✓
- O-Ring/Washer Included ✓
- NPT-3/8" (0.375-inch)
- IP68 Rating ✓
| Thread Size: | NPT 3/8" |
| Cable Range: | 3/16" - 3/8" (5-9mm) |
| Color: | Black |
| C1: | 16.7mm (0.66") |
| C2: | 16.2mm (0.63") |
| D2: | 12mm (0.47") |
| B1: | 9.3mm (0.36") |
| H: | 30mm (1.18") |
| L: | 48.5mm (1.91") |
| L1: | 11.7mm (0.46") |
| L2: | 9.9mm (0.38") |
| L3: | 16.7mm (0.66") |
| Material: | UL Approved 94UV-2 - Halogen Free |
| Ingress Protection: | IP68 |
| Flammability: | PA (Nylon), UL 94 |
| Hermetic Seal: | NBR (Nitrile Rubber) |
| O-Ring: | EPDM |
| Working Temperature: | -40°C to 105°C |
| UL Recognized: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:
Videos
Check out our YouTube channel!
