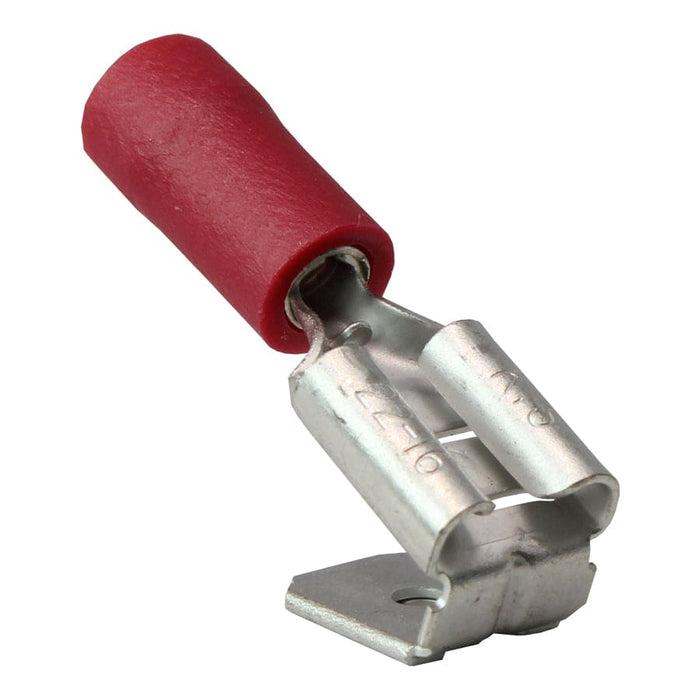

PBDD1-250 - Vinyl Insulated Piggyback Terminals 22-16 AWG - Double Crimp
Precio original
$15.58
-
Precio original
$15.58
Precio original
$15.58
$15.58
-
$15.58
Precio actual
$15.58
SKU PBDD1-250
Disponibilidad:
en stock, listo para ser enviado
Vinyl insulated double crimp piggy-back terminals create a splice when fitted together with their counterparts. These terminals allow for a second connection via the "piggy-back" tab on the back of the terminal. Double Crimp refers to an additional metal sleeve within the terminal to allow for a tighter hold around the wire, resulting in a more secure crimp.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Color: | Red |
| Insulation Material: | Vinyl |
| Terminal Material: | Tin-Plated Brass |
| Nema Tab: | 0.8mm x 6.35mm (0.032" x 0.250") |
| Max Electrical Rating: | 105°C (221°F) - 600 Volts |
| Max Electrical Current: | 10A |
| T: | 0.04mm (.02") |
| L: | 22.5mm (.89") |
| F: | 8mm (.32") |
| F1: | 8.2mm (.32") |
| W: | 6.6mm (.26") |
| D: | 4mm (.16") |
| B: | 10.5mm (.41") |
| W1: | 6.4mm (.25") |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
