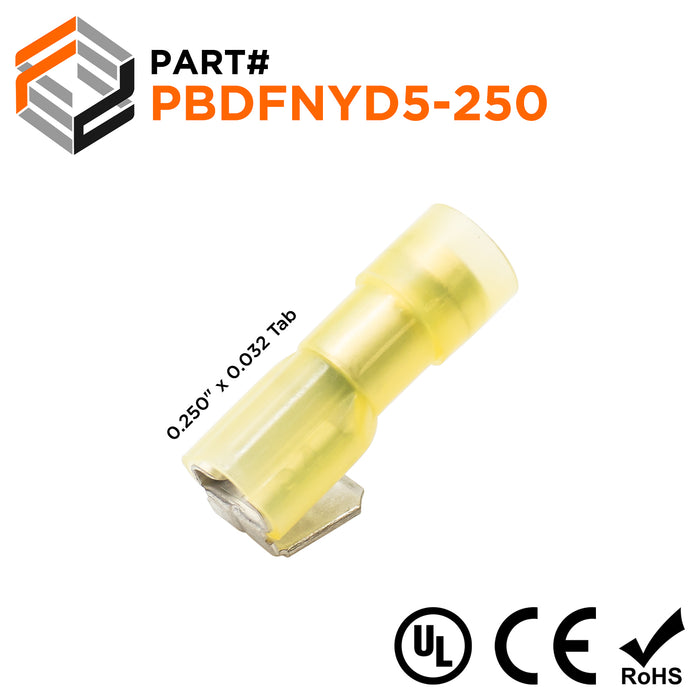

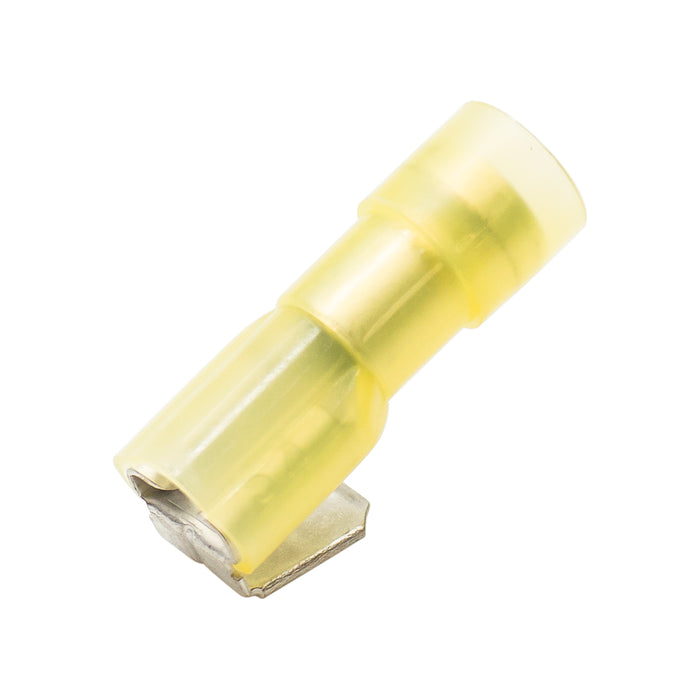

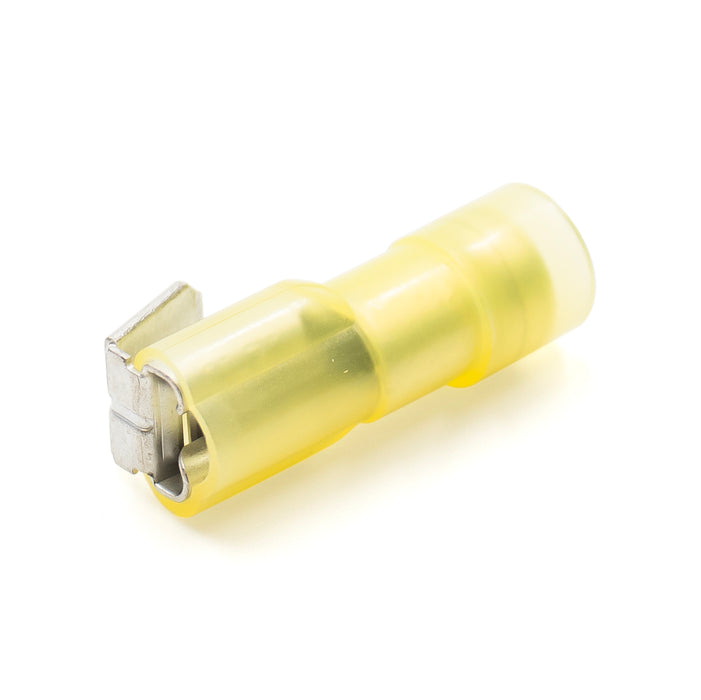

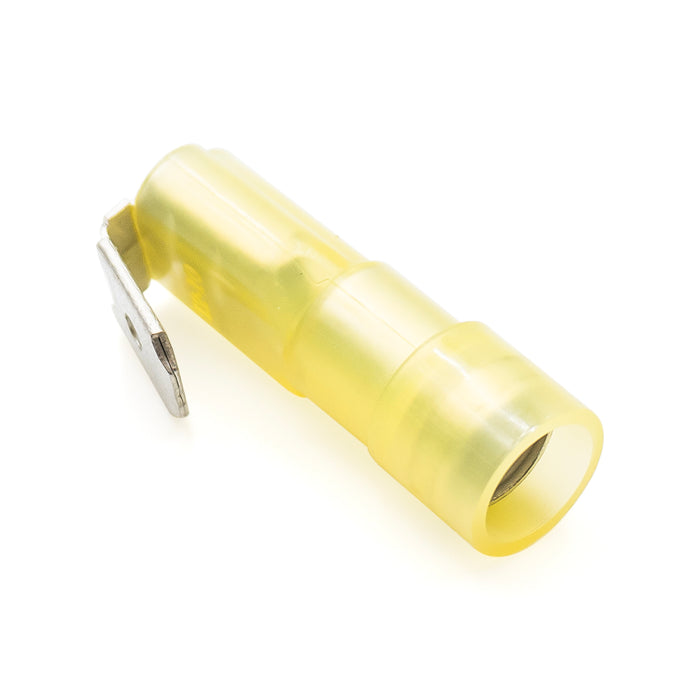

PBDFNYD5-250 - Nylon Fully Insulated Double Crimp Piggyback Terminals - 12-10 AWG - Yellow

Precio original $24.43 - Precio original $24.43
Precio original
$24.43
$24.43 - $24.43
Precio actual $24.43
SKU PBDFNYD5-250
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 100 Pieces

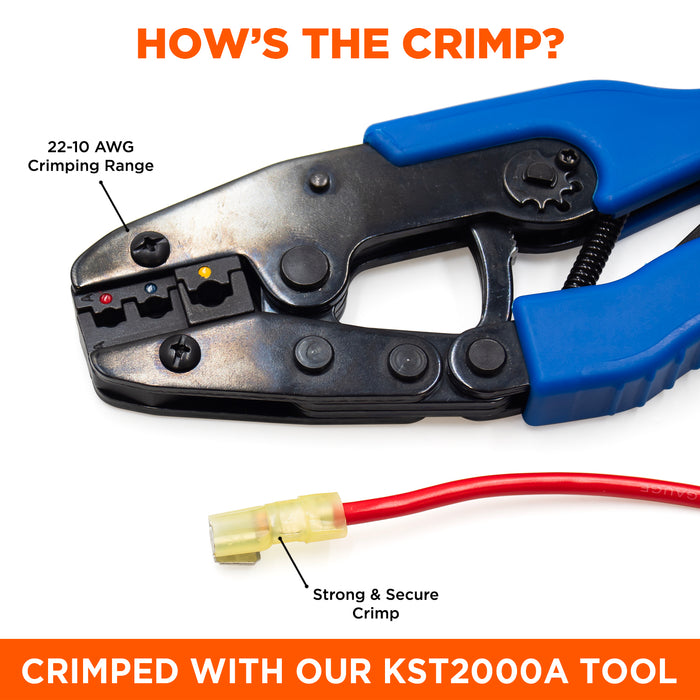

Piggyback disconnects can be used when other male disconnects are limited. It allows another quick disconnect to be connected to its tab. This creates more versatility in points of connection. Multiple connections allow additional circuits to be added to existing equipment without a full rework. Double crimp terminals are built with an additional inner copper barrel which: 1. Substantially reduces the strain on the wire strands. 2. Transfers strain to the wire jacket. 3. Provides a stronger connection. Double crimp terminals prevent wire terminations from becoming loose under stress or pulled out of the terminal, particularly in areas where vibrations are present.

Dimensions & Features:

Wire Size: 12-10 AWG
Color: Yellow
W: 6.6mm (0.26")
W1: 6.4mm (0.25")
F: 8.0mm (0.315")
F1: 8.2mm (0.323")
L: 24.4mm (0.96")
B: 12.8mm (0.50")
D: 6.6mm (0.26")
C: 3.4mm (0.13")
Nema Tab: 0.8 x 6.4mm (0.032 x 0.250")
Terminal Material: Brass (with copper sleeve)
Insulation Material: Nylon
Electrical Rating: 105°C - 600 Volts
Amp Rating: 24AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None
