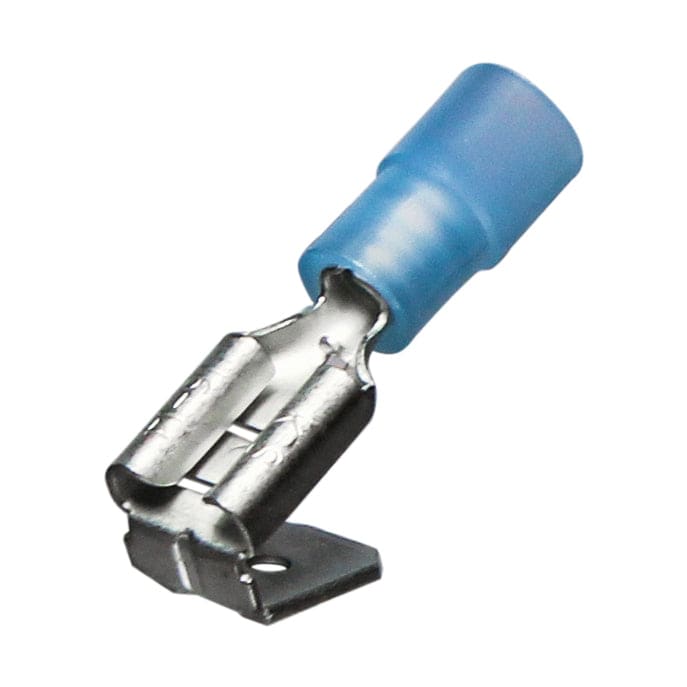

PBDNY2-250 - Nylon Insulated Piggyback Terminals - 16-14 AWG
Precio original
$16.46
-
Precio original
$16.46
Precio original
$16.46
$16.46
-
$16.46
Precio actual
$16.46
SKU PBDNY2-250
Disponibilidad:
en stock, listo para ser enviado
Nylon insulated double crimp piggy-back terminals create a splice when fitted together with their counterparts. These terminals allow for a second connection via the "piggy-back" tab on the back of the terminal.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 16-14 AWG |
| Color: | Blue |
| Insulation Material: | Nylon |
| Terminal Material: | Tin-Plated Brass |
| Nema Tab: | 0.8mm x 6.35mm (0.032" x 0.250") |
| Max Electrical Rating: | 105°C (221°F) - 600 Volts |
| Max Electrical Current: | 15A |
| T: | .04mm (.02") |
| L: | 23mm (.91") |
| F: | 8mm (.32") |
| F1: | 8.2mm (.32") |
| W: | 6.6mm (.26") |
| D: | 4.5mm (.18") |
| B: | 11mm (.43") |
| W1: | 6.4mm (.25") |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
