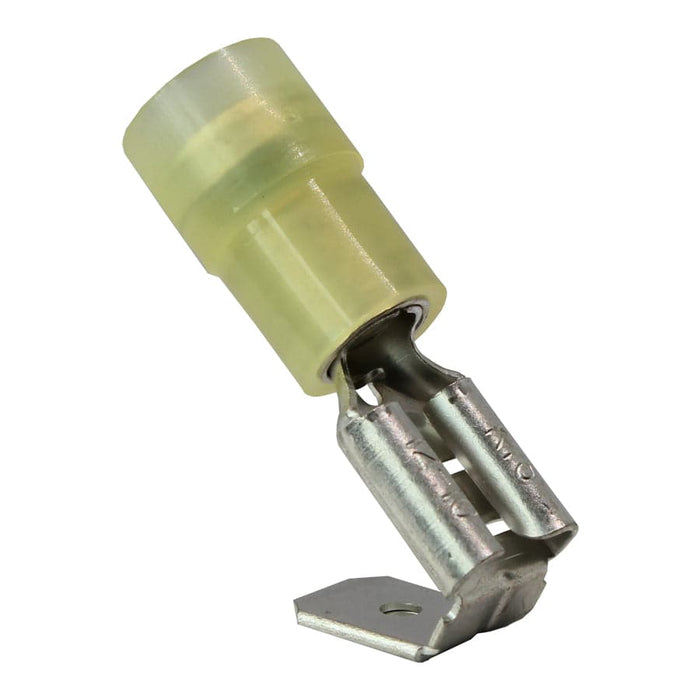

PBDNYD5-250 - Nylon Insulated Piggyback Terminals 12-10 AWG - Double Crimp

Precio original $22.48 - Precio original $22.48
Precio original
$22.48 - $22.48
Precio actual $22.48
en stock, listo para ser enviado
Pack Quantity: 100 Pieces
Nylon insulated double crimp piggy-back terminals create a splice when fitted together with their counterparts. These terminals allow for a second connection via the "piggy-back" tab on the back of the terminal. Double Crimp refers to an additional metal sleeve within the terminal to allow for a tighter hold around the wire, resulting in a more secure crimp.

    Dimensions & Features:

    Wire Size: 12-10 AWG
    Color: Yellow
    Inslation Material: Nylon
    Terminal Material: Tin-Plated Brass
    Nema Tab: 0.8mm x 6.35mm (0.032" x 0.250")
    Max Electrical Rating: 105°C (221°F) - 600 Volts
    Max Electrical Current: 24A
    T: 0.04mm (.02")
    L: 24mm (.95")
    F: 8mm (.32")
    F1: 8.2mm (.32")
    W: 6.6mm (.26")
    D: 6.5mm (.26")
    B: 13mm (.51")
    W1: 6.4mm (.25")
    UL Approved: Yes
    CE Certified: Yes
    RoHS Compliant: Yes

    Product Drawing:

    Cross References

    Cross Reference Parts:


    Click to view product spec sheet:
