16-14 AWG Non Insulated Parallel Connectors, 5/16" Length, UL Approved, 100 Pieces - PNT2
Precio original
$0.00
-
Precio original
$8.37
Precio original
$8.37
$0.00
-
$8.37
Precio actual
$8.37
SKU PNT2
Disponibilidad:
en stock, listo para ser enviado
Disponibilidad:
Agotado

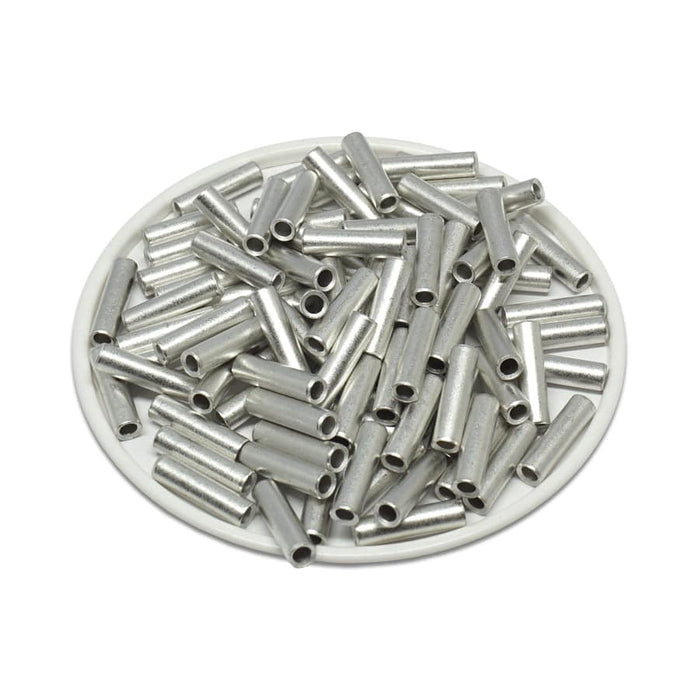

NON INSULATED PARALLEL CONNECTORS
Standard non insulated parallel splice connectors are the most economical among all the butt connectors. Made of seamless copper tubing, these parallel splice connectors offer a higher tensile strength than normal butted seam connectors. Product's tin plating offers excellent corrosion protection.
Dimensions & Features:
| Wire Range: | 16-14 AWG |
| L: | 8mm (0.315") |
| D: | 3.9mm (0.15") |
| D1: | 2.3mm (0.09") |
| Wall Thickness: | 0.8mm (0.03") |
| Material: | Tin-Plated Copper - Seamless |
| Configuration: | Straight |
| Max Electrical Current: | 18-30 AMP |
| UL Recognized: | Yes |
| CE Cerified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:
Videos
Check out our YouTube channel!
