1/0 AWG Non Insulated Parallel Connectors, 3/4" Length, UL Approved, 25 Pieces - PNT60
Precio original
$41.92
-
Precio original
$41.92
Precio original
$41.92
$41.92
-
$41.92
Precio actual
$41.92
SKU PNT60
Disponibilidad:
en stock, listo para ser enviado

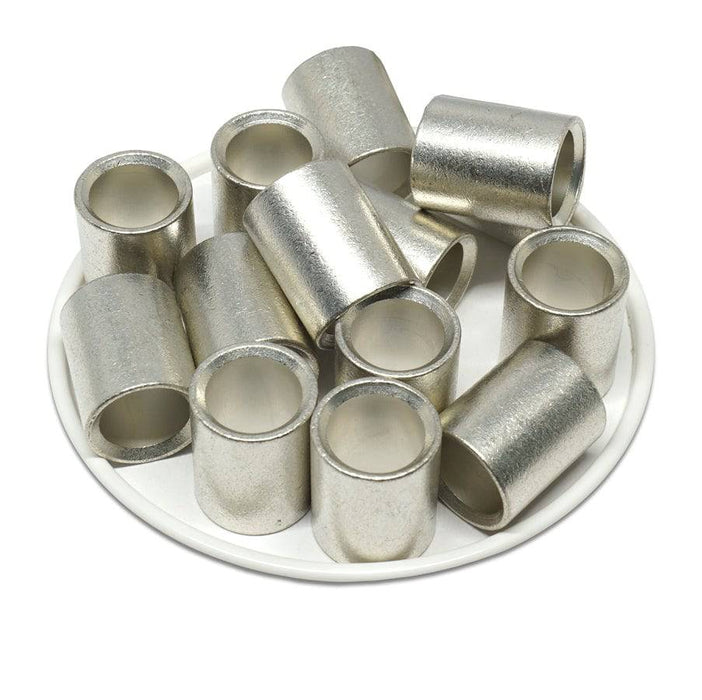

NON INSULATED PARALLEL CONNECTORS
Standard non insulated parallel splice connectors are the most economical among all the butt connectors. Made of seamless copper tubing, these parallel splice connectors offer a higher tensile strength than normal butted seam connectors. Product's tin plating offers excellent corrosion protection.
Dimensions & Features:
| Wire Range: | 2 AWG |

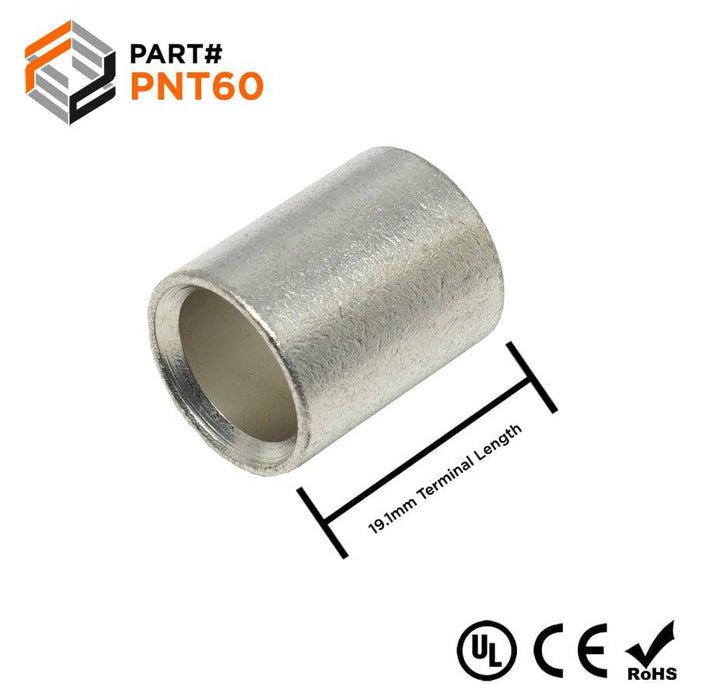

| L: | 19.1mm (0.75") |
| D: | 15.3mm (0.60") |
| D1: | 11.4mm (0.44") |
| Wall Thickness: | 1.0mm (0.04") |
| Material: | Tin-Plated Copper - Seamless |
| Configuration: | Straight |
| Max Electrical Current: | 170 AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:Burndy: YSM25
Tyco AMP: 36946
