PSST104DW - Double Wall Heat shrink Soldersleeve - 12-10 AWG - Yellow - 25/pk - Ferrules Direct

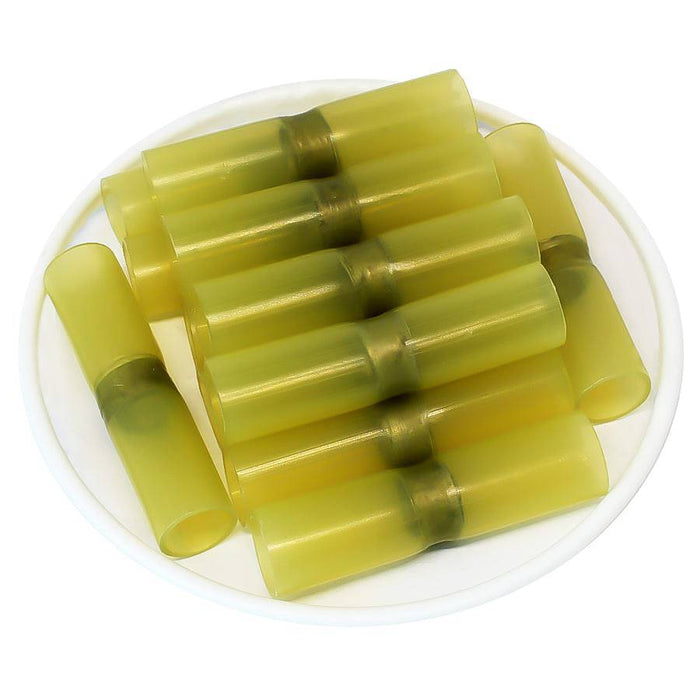

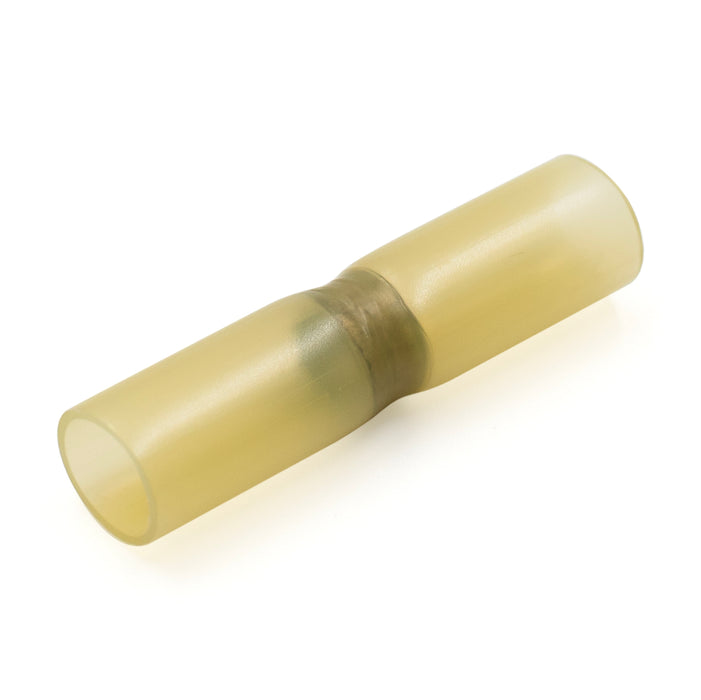

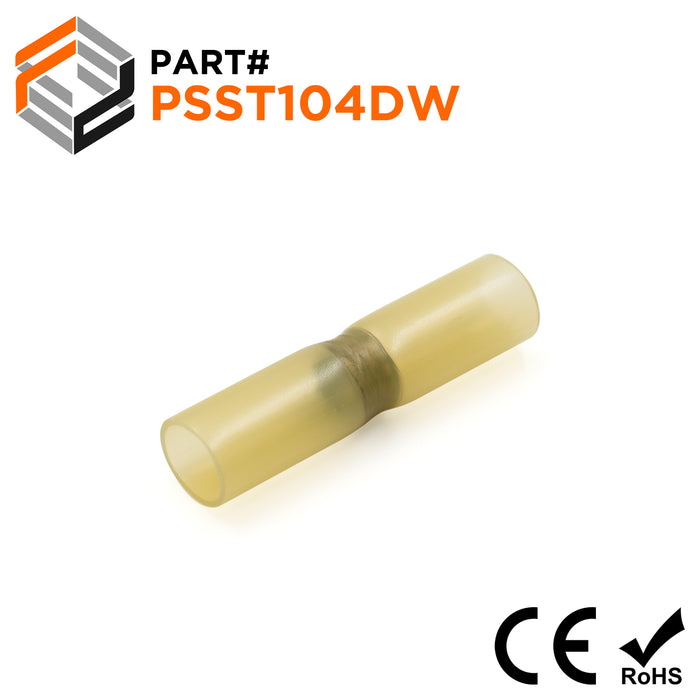

PSST104DW - Double Wall Heat shrink Soldersleeve - 12-10 AWG - Yellow - 25/pk

$18.56 - $18.56
$18.56
$18.56 - $18.56
$18.56
SKU PSST104DW

Quantity: 25 Pieces

Disponibilidad:
en stock, listo para ser enviado
true
Heat shrink soldersleeves provide sealed protection against environmental extremities. They insulate, seal and protect joints from physical abuse, abrasion, water, salt, and other corrosive elements.

Dimensions & Features:

Wire Size: 12-10 AWG
Color: Yellow
L: 40mm ± 1.5 (1.57")
D: 6.0mm (0.24")
Terminal Material: Tin-Plated Copper
Insulation Material: Polyolefin
Temperature Rating: -55°C to 125°C

Product Drawing:
