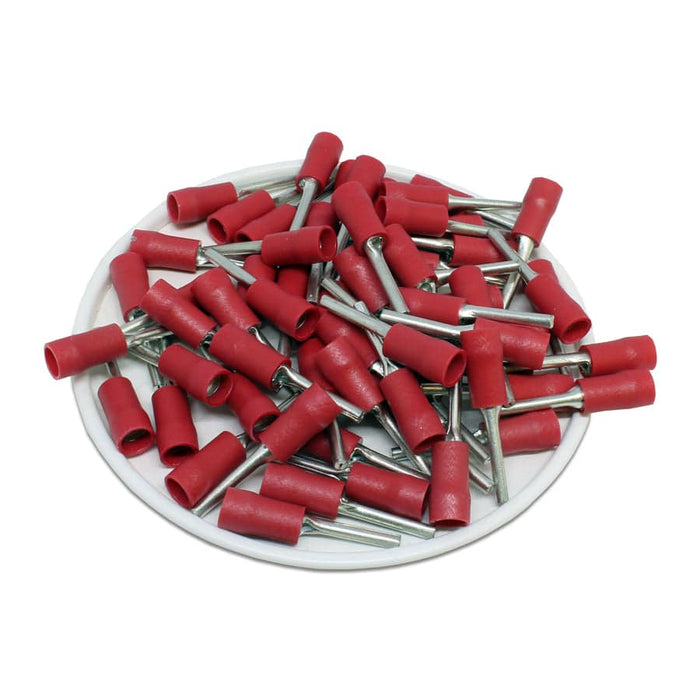

PTD1-13 - Vinyl Insulated Pin Terminals - Double Crimp - 22-16 AWG - Red
Precio original
$12.67
-
Precio original
$12.67
Precio original
$12.67
$12.67
-
$12.67
Precio actual
$12.67
SKU PTD1-13
Quantity: 100 Pieces
Disponibilidad:
en stock, listo para ser enviado
Pin terminals offer quick and easy connections in applications where set screws or clamps are used to make electrical contact with the wire.
Dimensions & Features:
Technical Drawing:
None
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Color: | Red |
| T: | 0.75mm (0.03") |
| L: | 22.8mm (0.89") |
| F: | 13mm (0.51") |
| E: | 10mm (0.39") |
| W: | 1.9mm (0.08") |
| D: | 4mm (0.16") |
| D1: | 1.7mm (0.07") |
| Terminal Material: | Tin-Plated Copper |
| Max Electrical Rating: | 105°C - 600 Volts |
| Max Amp Rating: | 18A |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross Reference Parts:None
