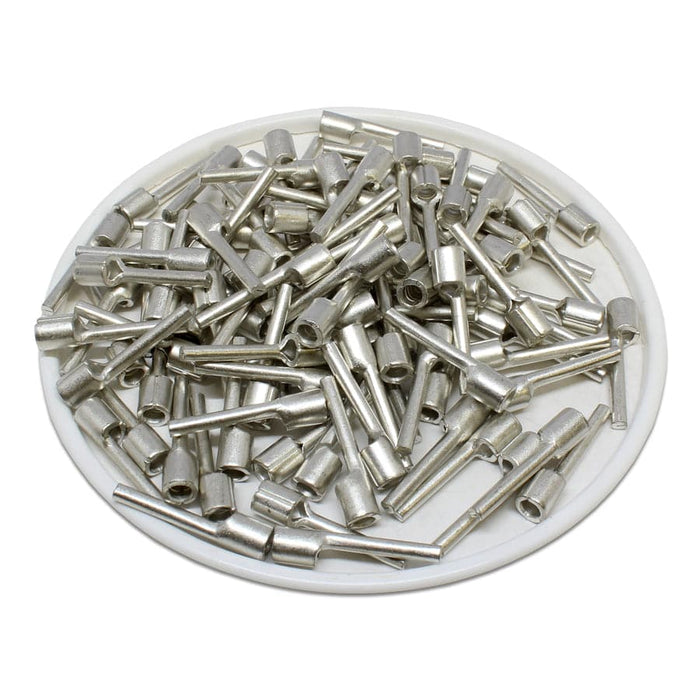

16-14 AWG Non Insulated Pin Terminals, 1/2" Pin, UL Approved, 100 Pieces - PTNB2-13
Precio original
$10.24
-
Precio original
$10.24
Precio original
$10.24
$10.24
-
$10.24
Precio actual
$10.24
SKU PTNB2-13
Disponibilidad:
en stock, listo para ser enviado
NON INSULATED PIN TERMINALS
Pin terminals are used to connect cables and wires to an electrical system. They are commonly used to connect wires to terminal blocks. For standard applications, pin terminals provide quick and easy connections when using of screw or clamp type blocks. However, they can also be used in applications where a slight reduction in wire circumference is needed for tight spaces.
Dimensions & Features:
| Wire Size: | 16-14 AWG |
| Seam: | Brazed |
| Pin Length: |
1/2" |
| Material: | Tin-Plated Copper |
| T: | 0.8mm (0.03") |
| L: | 17.8mm (0.70") |
| F: | 13.0mm (0.51") |
| E: | 4.8mm (0.19") |
| W: | 1.9mm (0.08") |
| D: | 4.1mm (0.16") |
| D1: | 2.3mm (0.09") |
| Maxed Electrical Current: | 30AMP |
| UV Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
