Nylon Adjustable Push Mount Cable Clamps, Gray, Range: 5/8" to 11/16" - PTS-1618
Precio original
$30.63
-
Precio original
$30.63
Precio original
$30.63
$30.63
-
$30.63
Precio actual
$30.63
SKU PTS-1618
Disponibilidad:
en stock, listo para ser enviado

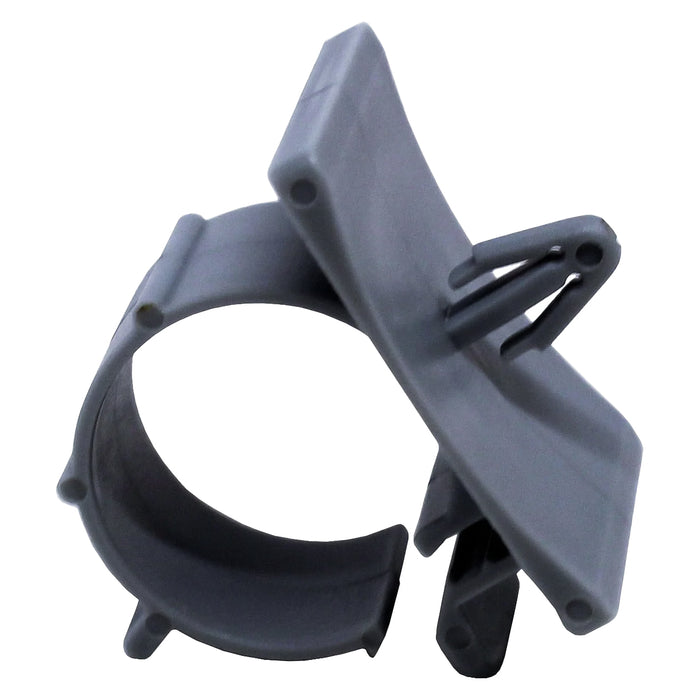

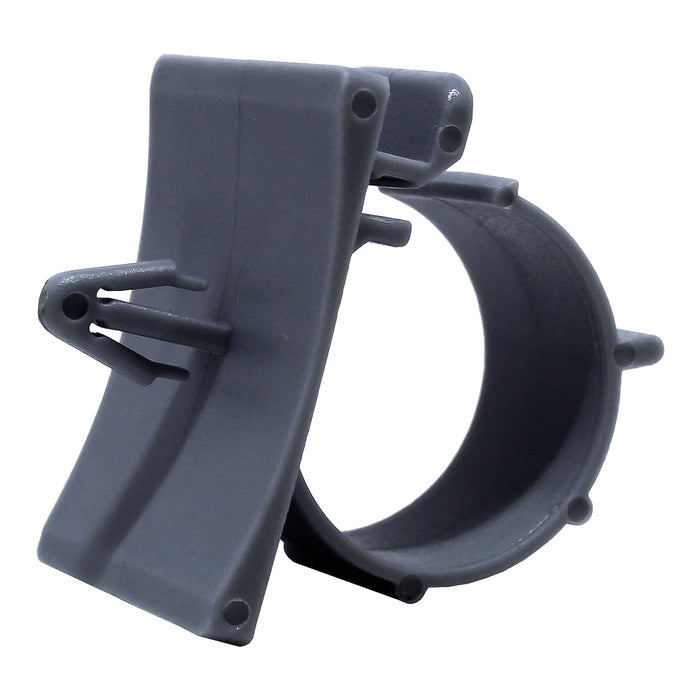

NYLON ADJUSTABLE PUSH MOUNT CABLE CLAMPS
Push mount clamps feature a two stage locking mechanism that is designed to accommodate more than one cable size in one clamp. To install, push barbed clamp pin to diameter hole. Insert cable, wire, tube, or conduit inside clamp and snap close. To open, press release tongue on the side of the clamp.
DIMENSIONS & FEATURES:
| Cable Range: | 5/8" to 11/16" (16-18mm) |
| Color: | Gray |
| A: | 16-18mm (0.62-0.70") |
| B: | 30.1mm (1.185") |
| C: | 24.1mm (0.948") |
| D: | 12.3mm (0.484") |
| Mounting Hole: | 4.8mm (0.19") |
| Material: | UL Approved 94UV-2 Nylon 6/6 |
| Service Temperature: | -40°F to 185°F (-40°C to 85°C) |
| UL Approved: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
TECHNICAL DRAWING:
