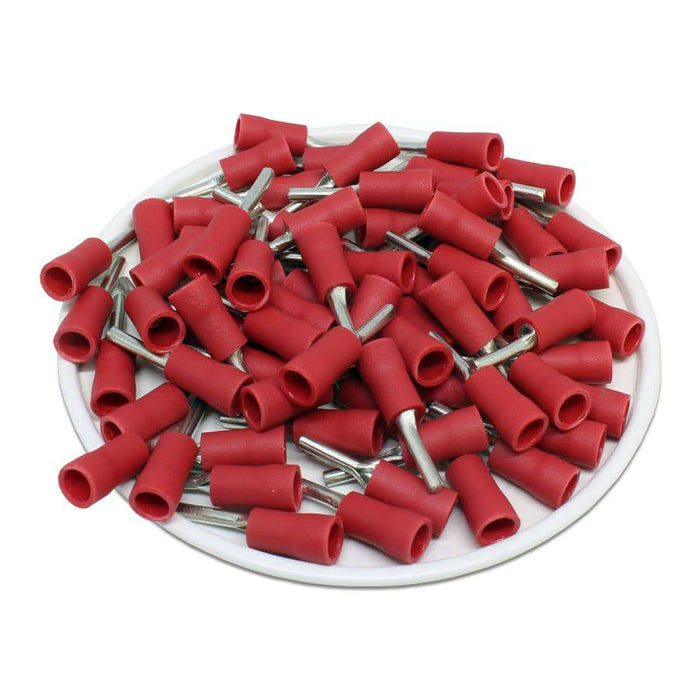

PTV1-10 - Vinyl Pin Terminals - 22-16 AWG

Precio original $6.60 - Precio original $6.60
Precio original
$6.60
$6.60 - $6.60
Precio actual $6.60
SKU PTV1-10
Disponibilidad:
en stock, listo para ser enviado
Piece Quantity: 100 Pieces
Pin terminals offer quick and easy connections in applications where set screws or clamps are used to make electrical contact with the wire.

Dimensions & Features:

Wire Size: 22-16 AWG
Color: Red
T: 0.75mm (0.03")
L: 19.8mm (0.78")
F: 10mm (0.39")
E: 10mm (0.39")
W: 1.9mm (0.08")
D: 4mm (0.16")
D1: 1.7mm (0.07")
Seam: Butted
Terminal Material: Tin-Plated Copper
Max Electrical Rating: 105°C - 600 Volts
Max Amp Rating: 18A
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Technical Drawing:



Cross References

Cross Reference Parts:

McMaster-Carr: 8009K36
