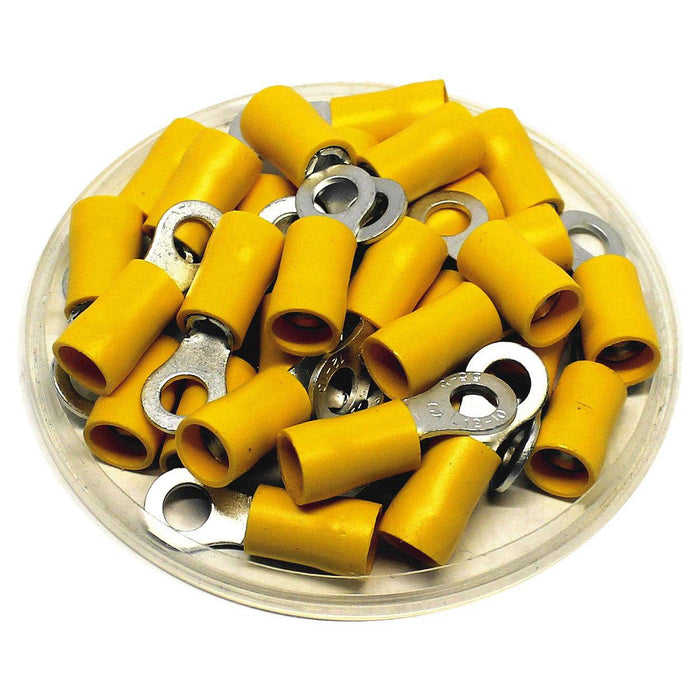

RD5-5 - Double Crimp Vinyl Insulated Ring Terminals - 12-10 AWG - #10 Stud

Precio original $13.20 - Precio original $13.20
Precio original
$13.20
$13.20 - $13.20
Precio actual $13.20
SKU RD5-5
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 50 Pieces

Ring terminal design offers a tight and secure connection in high vibration areas, Vinyl insulation sleeve is securely fastened to metal insulation grip sleeve, providing protection to crimp joint. Color coded according to industry standards Internal barrel serrations offer good wire contact and maximum tensile strength.

Dimensions & Features:

Wire Size: 12-10 AWG
Stud Size: #10 Stud
Color: Yellow
T: 1mm (.04")
L: 26.1mm (1.02")
F: 8.3mm (0.33")
E: 13.5mm (0.53")
W: 9.5mm (0.37")
D: 6.8mm (0.27")
D1: 3.4mm (0.13")
D2: 5.3mm (0.17")
Terminal Insulation: Vinyl
Terminal Material: Tin-Plated Copper
Max Voltage Rating: 105°C - 600 Volts
Max Electrical Current: 50 AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes


Product Drawing:


Cross References

Cross Reference Parts:
None
