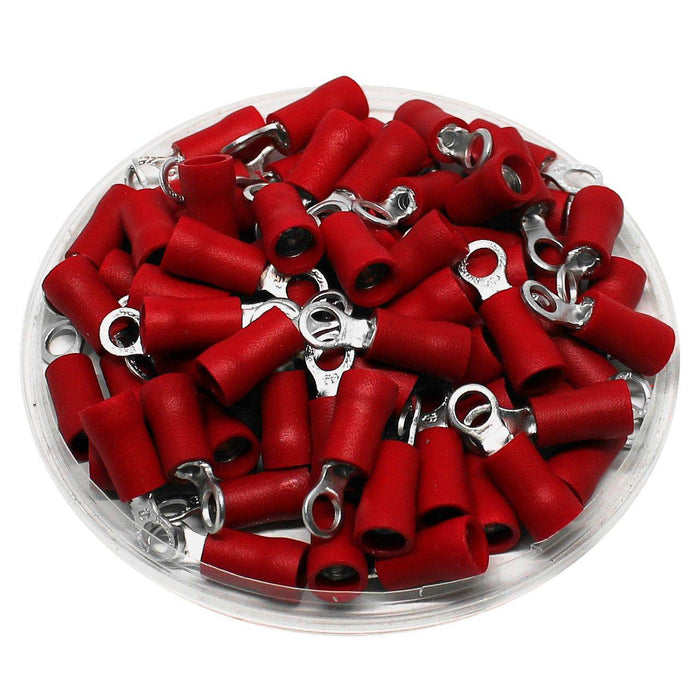

RDS1-3.7 - Double Crimp Vinyl Insulated Ring Terminals - 22 AWG to 16 AWG

Precio original $6.97 - Precio original $6.97
Precio original
$6.97
$6.97 - $6.97
Precio actual $6.97
SKU RDS1-37
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 100 Pieces

PRODUCT DESCRIPTION

Ring terminals offer a tight and secure connection in high vibration areas. The insulated sleeve is securely fastened to metal grip sleeve providing potection to the crimp joint. Color coded according to industry standards.

DIMENSIONS AND FEATURES
Wire Range: 22-16 AWG Color: Red
T: 0.75mm (.03") Terminal Material: Tin-Plated Copper
L: 18mm (0.71") Insulation Material: Vinyl
F: 5mm (0.20") Stud Size: #6
E: 10.5mm (0.41") Temperature Rating: 1050C
W: 5.5mm (0.22") Voltage Rating: 600 Volts
D: 4.2mm (0.17") UL Recognized: Yes
D1: 1.7mm (.07") CE Certified: Yes
D2: 3.7mm (.15) RoHS Compliant Yes

TECHNICAL DRAWING

Cross Reference Parts:

Click to view data sheet
