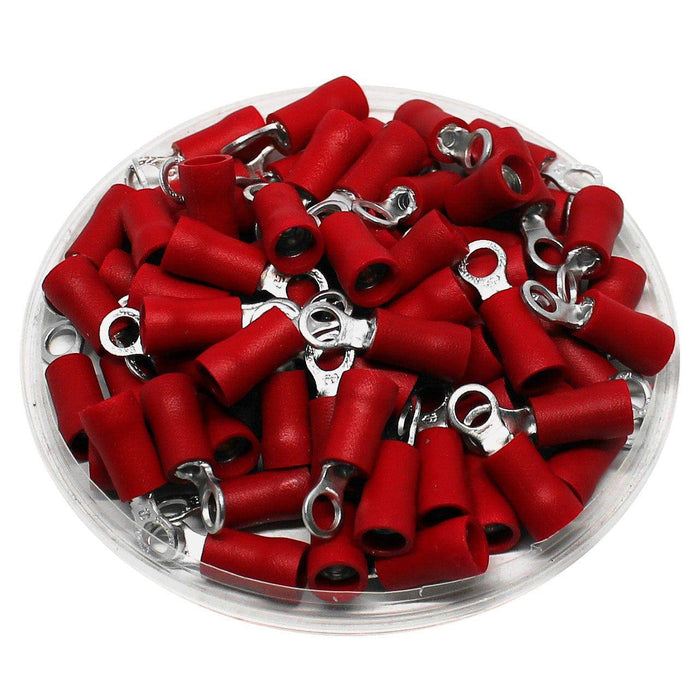

RDS1-4 - Double Crimp Vinyl Insulated Ring Terminals - 22 AWG to 16 AWG
Precio original
$8.00
-
Precio original
$8.00
Precio original
$8.00
$8.00
-
$8.00
Precio actual
$8.00
SKU RDS1-4
Quantity: 100 Pieces
Disponibilidad:
en stock, listo para ser enviado
| PRODUCT DESCRIPTION | |||
|
Ring terminals offer a tight and secure connection in high vibration areas. The insulated sleeve is securely fastened to metal grip sleeve providing potection to the crimp joint. Color coded according to industry standards. |
|||
| DIMENSIONS AND FEATURES | |||
| Wire Range: | 22-16 AWG | Color: | Red |
| T: | 0.75mm (.03") | Terminal Material: | Tin-Plated Copper |
| L: | 19.9mm (0.78") | Insulation Material: | Vinyl |
| F: | 6.3mm (0.25") | Stud Size: | #8 |
| E: | 10.5mm (0.41") | Temperature Rating: | 1050C |
| W: | 6.6mm (0.26") | Voltage Rating: | 600 Volts |
| D: | 4.2mm (0.17") | UL Recognized: | Yes |
| D1: | 1.7mm (.07") | CE Certified: | Yes |
| D2: | 4.3mm (.17) | RoHS Compliant | Yes |
|
TECHNICAL DRAWING |
|||
 |
|||
Cross Reference Parts:
Click to view data sheet
