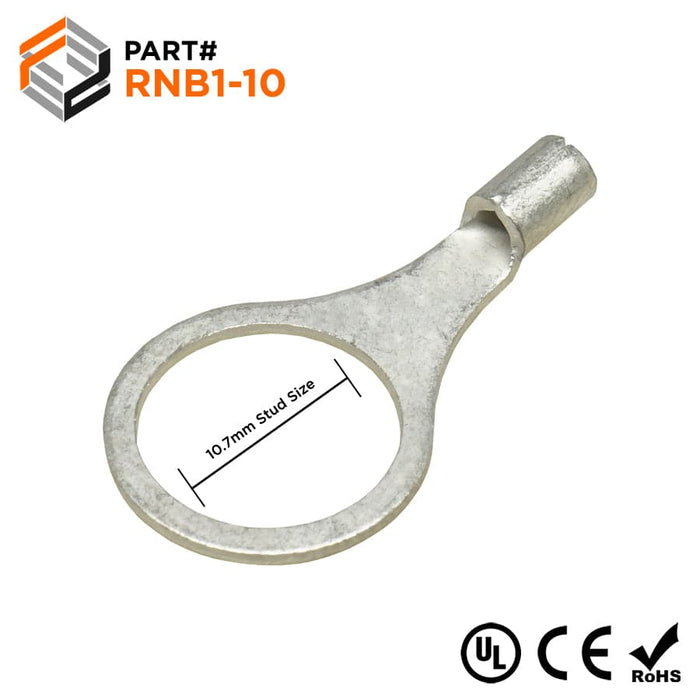

RNB1-10 - Non Insulated Ring Terminal 22-16AWG
Precio original
$11.79
-
Precio original
$11.79
Precio original
$11.79
$11.79
-
$11.79
Precio actual
$11.79
SKU RNB1-10
Disponibilidad:
en stock, listo para ser enviado
Ring terminals offer a tight and secure connection in high vibration areas. The brazed seam construction protects the terminal's barrel from splitting when crimped
Product Drawing:
3M: M18-38RX
Cembre: S1.5-M8
Elecdirect: R2A56
Panduit: P18-38R-C
Tyco AMP: 34104
| Wire Range: | 22-16 AWG |
| T: | 0.03" (0.75mm) |
| L: | 1.00" (25.5mm) |
| F: | 0.55" (13.9mm) |
| E: | 0.19" (4.8mm) |
| W: | 0.53" (13.5mm) |
| D: | 0.13" (3.4mm) |
| D1: | 0.07" (1.7mm) |
| D2: | 0.41" (10.7mm) |
| Terminal Material: | Tin-Plated Copper |
| Stud Size: | 3/8 Stud |
| Temperature Rating: | 150oC - 600 Volts |
| Max Electrical Rating: | 18 AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:3M: M18-38RX
Cembre: S1.5-M8
Elecdirect: R2A56
Panduit: P18-38R-C
Tyco AMP: 34104
