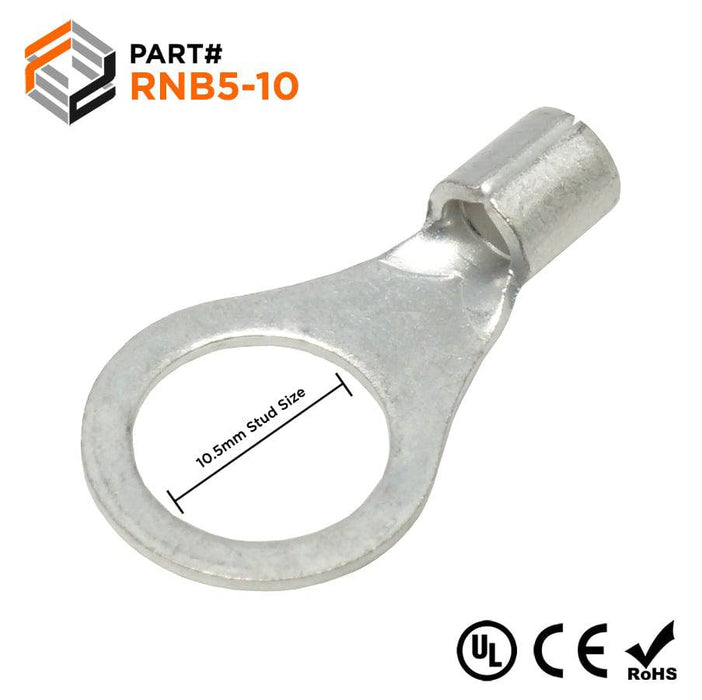

RNB5-10 - Non Insulated Ring Terminal - 12-10AWG

Precio original $24.38 - Precio original $24.38
Precio original
$24.38 - $24.38
Precio actual $24.38
en stock, listo para ser enviado

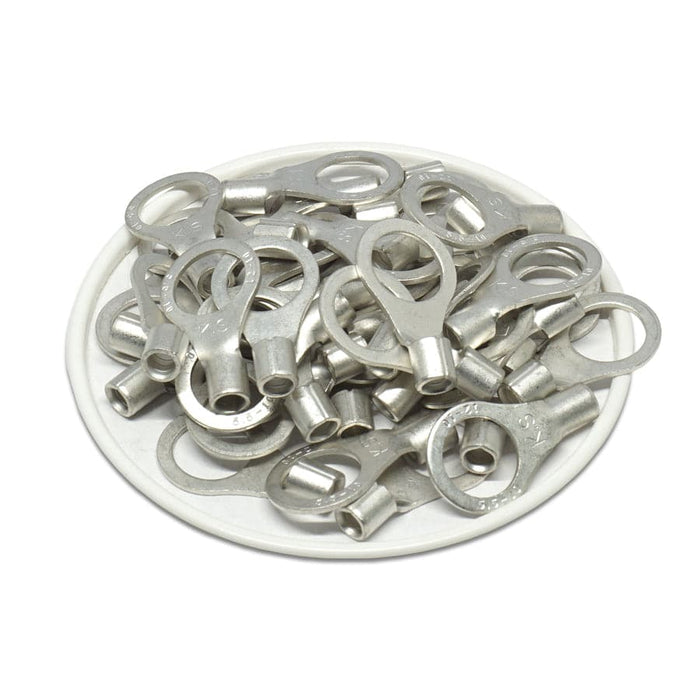

Pack Quantity: 100 Pieces
Ring tongue design offers a tight and secure connection in high vibration areas, the non insulated crimp joint meets industry standards with internal barrel serrations for good wire contact and maximum tensile strength.

Wire Range: 12-10 AWG
T: 0.04" (1.0mm)
L: 1.10" (27.0mm)
F: 0.52" (13.3mm)
E: 0.24" (6.0mm)
W: 0.59" (15.0mm)
D: 0.22" (5.6mm)
D1: 0.13" (3.4mm)
D2: 0.41" (10.5mm)
Terminal Material: Tin-Plated Copper
Stud Size: 3/8 Stud
Temperature Rating: 150oC - 600 Volts
Max Electrical Rating: 50 AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
3M: M10-38R/SX
Cembre: S6-M10/1
Elecdirect: R2C38
McMaster-Carr: 7113K19
Panduit: P10-38R-L
Phoenix Contact: 3240087
Tyco AMP: 33220
