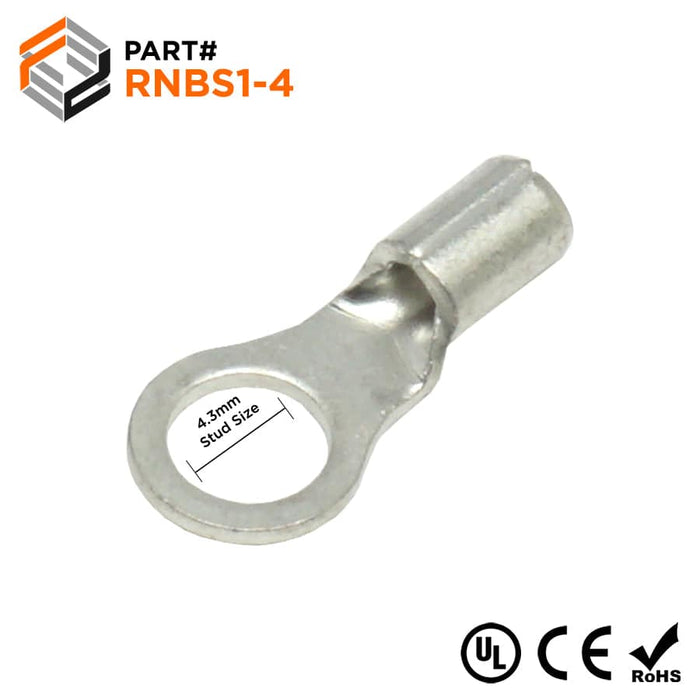

RNBS1-4 - Non Insulated Ring Terminal - 22-16AWG - #8 Stud

Precio original $6.60 - Precio original $6.60
Precio original
$6.60 - $6.60
Precio actual $6.60
Stock bajo
Pack Quantity: 100 Pieces
Ring tongue design offers a tight and secure connection in high vibration areas, the non insulated crimp joint meets industry standards with internal barrel serrations for good wire contact and maximum tensile strength.

Wire Range: 22-16 AWG
Stud Size: #8 Stud
T: 0.03" (0.8mm)
L: 0.57" (14.4mm)
F: 0.25" (6.3mm)
E: 0.19" (4.8mm)
W: 0.29" (6.6mm)
D: 0.13" (3.4mm)
D1: 0.07" (1.7mm)
D2: 0.17" (4.3mm)
Terminal Material: Tin-Plated Copper
Temperature Rating: 150°C - 600 Volts
Max Electrical Rating: 18 AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
3M: M18-4R/SX
Cembre: S1.5-M3
Eclipse: 902-407-10
Panduit: P18-8R-C - P18-8R-D
Phoenix Contact: 3240070
Tyco AMP: 34104
