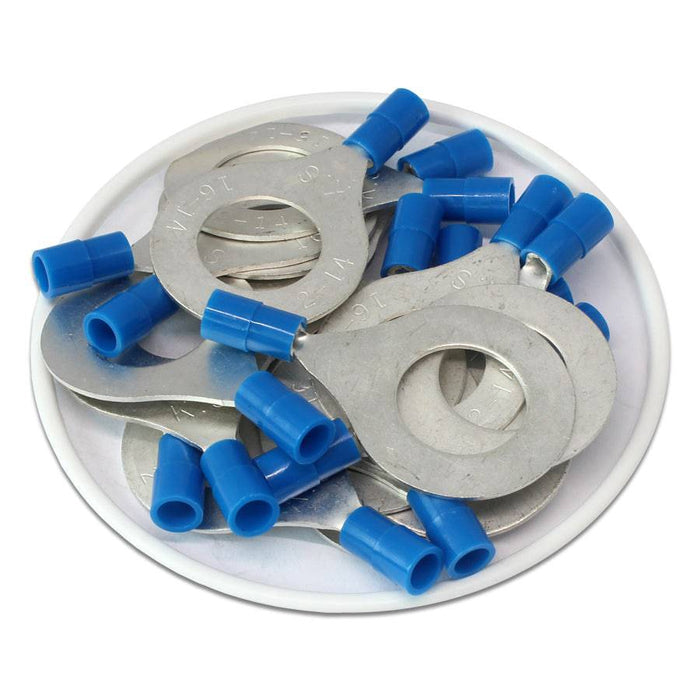

16-14 AWG Nylon Insulated Ring Terminals, 9/16" Stud, Butted Seam, 50 Pieces - RNY2-14
Precio original
$27.31
-
Precio original
$27.31
Precio original
$27.31
$27.31
-
$27.31
Precio actual
$27.31
SKU RNY2-14
Disponibilidad:
en stock, listo para ser enviado
NYLON INSULATED RING TERMINALS
Ring terminals offer a tight and secure connection in high vibration areas. Simply crimp the ring terminals to your stranded wires to be attached to studs or posts. Nylon Insulated ring terminals come in a variety of sizes and styles in a brazed or butted format.
Application Info:
Ring terminals (sometimes called split ring terminals): electrical contact is made by the flat surface of the ring, while mechanically they are attached by passing a screw or bolt through them. Their sizes can be determined by the gauge (AWG) of the conducting wire, and the interior and exterior diameters.
Dimensions & Features:
| T: | 0.8mm (0.03") |
| L: | 45.3mm (1.78") |
| F: | 21mm (0.83") |
| E: | 11mm (0.43") |
| W: | 27mm (1.06") |
| D | 4.5mm (0.18") |
| D1: | 2.3mm (0.09") |
| D2: | 15mm (0.59") |
| Wire Range: | 16-14 AWG |
| Color: | Blue |
| Terminal Material: | Tin-Plated Copper |
| Terminal Insulation: | Nylon |
| Max Electrical Rating: | 600 Volts (105oC) |
| Seam: | Butted |
| Stud Size: | 9/16" |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
