RNYDL1-5 Nylon Ring Terminals - Double Crimp 22-16AWG
Precio original
$14.84
-
Precio original
$14.84
Precio original
$14.84
$14.84
-
$14.84
Precio actual
$14.84
SKU RNYDL1-5
Disponibilidad:
en stock, listo para ser enviado

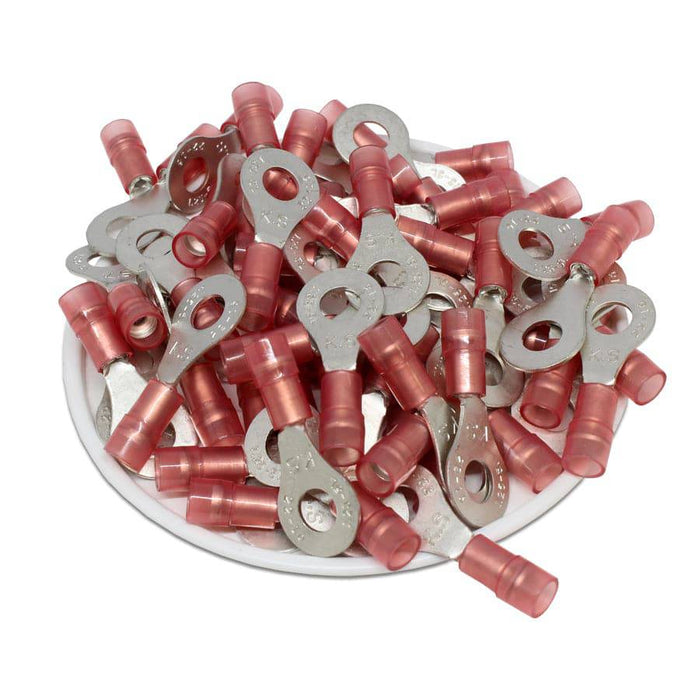

NYLON INSULATED RING TERMINALS
Ring terminals offer a tight and secure connection in high vibration areas. Simply crimp the ring terminals to your stranded wires to be attached to studs or posts. Nylon Insulated ring terminals come in a variety of sizes and styles in a brazed or butted format.
Application Info:
Ring terminals (sometimes called split ring terminals): electrical contact is made by the flat surface of the ring, while mechanically they are attached by passing a screw or bolt through them. Their sizes can be determined by the gauge (AWG) of the conducting wire, and the interior and exterior diameters.
Dimensions & Features:
| Wire Range: | 22-16 AWG |
| Stud Size: | #10 Stud |
| Color: | Red |
| T: | 0.75mm (0.03") |
| L: | 21.8mm (0.86") |
| F: | 7.0mm (0.27") |
| E: | 11mm (0.43") |
| W: | 8.0mm (0.32") |
| D | 4.5mm (0.18") |
| D1: | 1.7mm (0.07") |
| D2: | 5.3mm (0.209") |
| Terminal Material: | Tin-Plated Copper |
| Terminal Insulation: | Nylon |
| Max Electrical Rating: | 600 Volts (105oC) |
| Seam: | Butted |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
