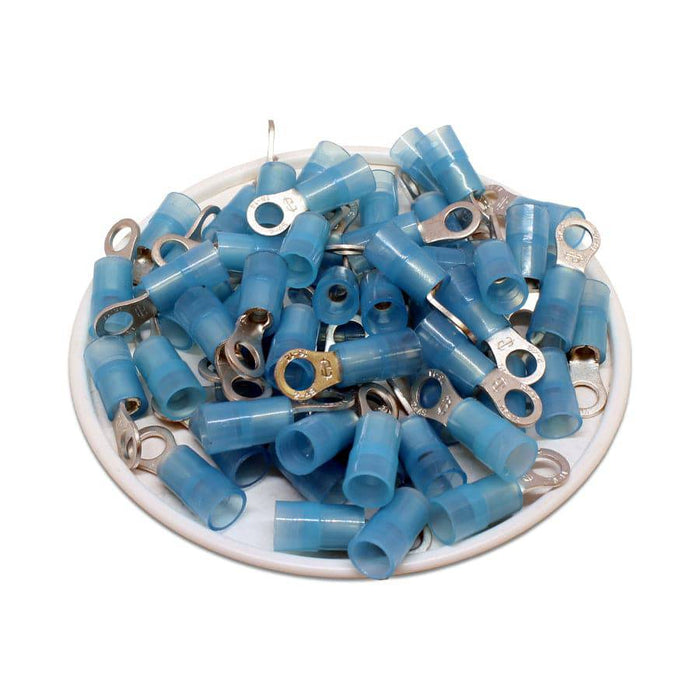

RNYS2-4 Nylon Ring Terminals - Standard Crimp 16-14AWG - Stud #8

Precio original $7.80 - Precio original $7.80
Precio original
$7.80
$7.80 - $7.80
Precio actual $7.80
SKU RNYS2-4
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 100 Pieces

Ring terminals offer a tight and secure connection in high vibration areas. The insulated sleeve is securely fastened to metal grip sleeve providing protection to the crimp joint. Color coded according to industry standards.

Dimensions & Features:

Wire Range: 16-14AWG
Stud Size: #8
Color: Blue
T: 0.8mm (0.03")
L: 20.4mm (0.80")
F: 6.3mm (0.25")
E: 11mm (0.43")
W: 6.6mm (0.26")
D 4.5mm (0.18")
D1: 2.3mm (0.09")
D2: 4.3mm (0.17")
Seam: Butted
Terminal Material: Tin-Plated Copper
Terminal Insulation: Nylon
Max Electrical Rating: 600 Volts (105oC)
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes



Technical Drawing:

Cross References

Cross Reference Parts:
3M: MNG14-8R/SK
Leidos: 20-72213
McMaster-Carr: 7113K454
Newark: MC29547
Panduit: PN14-8R-C
Thomas Betts: RB14-8
Tyco AMP: 320560
