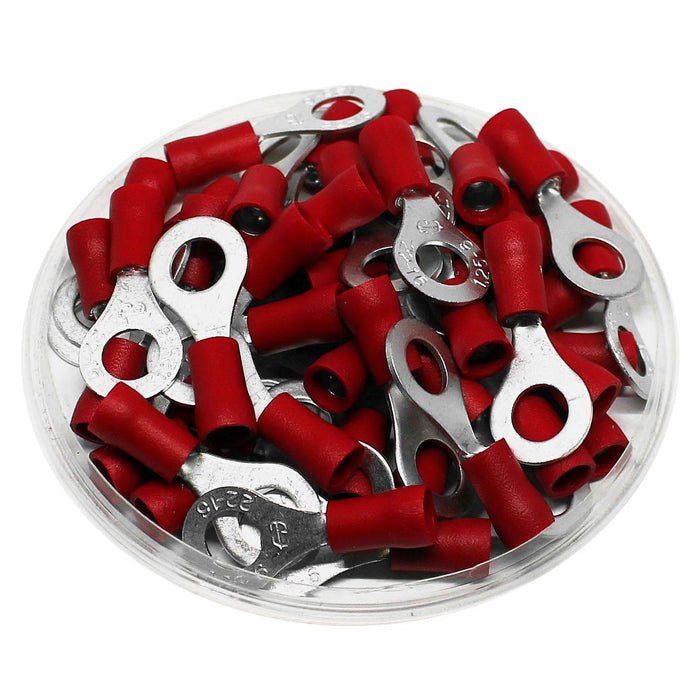

22-16 AWG PVC Vinyl Insulated Ring Terminals, 1/4" Stud, Butted Seam, 100 Pieces - RV1-6

Precio original $7.64 - Precio original $7.64
Precio original
$7.64
$7.64 - $7.64
Precio actual $7.64
SKU RV1-6
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 100 Pieces

VINYL (PVC) INSULATED RING TERMINALS

Ring terminals offer a tight and secure connection in high vibration areas. Simply crimp the ring terminals to your stranded wires to be attached to studs or posts. Vinyl Insulated ring terminals come in a variety of sizes and styles in a brazed or butted format.

Application Info:

Ring terminals (sometimes called split ring terminals): electrical contact is made by the flat surface of the ring, while mechanically they are attached by passing a screw or bolt through them. Their sizes can be determined by the gauge (AWG) of the conducting wire, and the interior and exterior diameters.

Dimensions & Features:

T: 0.75mm (0.03")
L: 26.8mm (1.10")
F: 11mm (0.43)
E: 10mm (0.39")
W: 11.6mm (0.46")
D 4mm (0.16")
D1: 1.7mm (0.07")
D2 6.4mm (0.25")
Color: Red
Terminal Material: Tin-Plated Copper
Insulation Material: Vinyl
Stud Size: 1/4"
Seam: Butted
Temperature Rating: 105oC
Voltage Rating: 600 Volts
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes



Technical Drawing:


Cross References

Cross References:

3M: MVU18-14R/SK
Burndy: TP16-14
Cembre: RVF-R 14
Eclipse: 902-440-10
Elecdirect: R4A14S
McMaster-Carr: 7113K612
Panduit: PV18-14R-CY
Tyco AMP: 32953
Weidmuller: 1492440000
