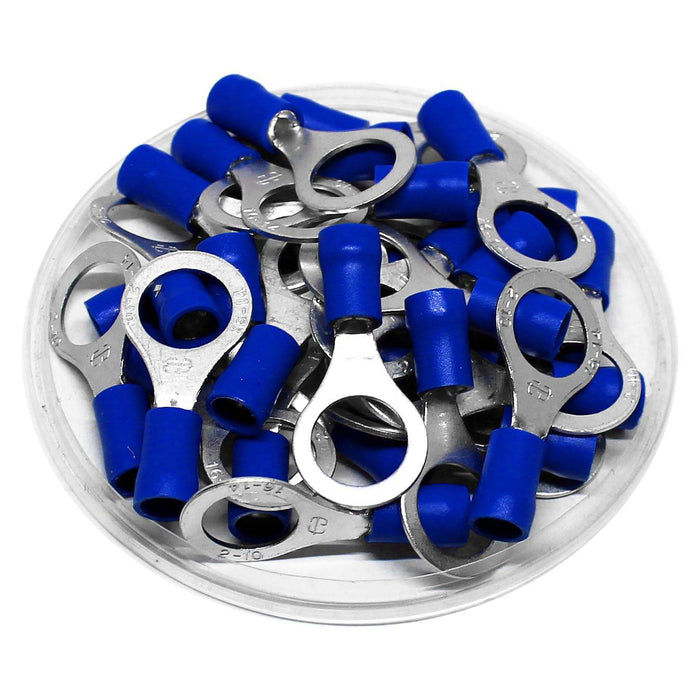

16 to 14 AWG PVC Vinyl Insulated Ring Terminals, 3/8" Stud, Butted Seam, 100 Pieces - RV2-10

Precio original $13.09 - Precio original $13.09
Precio original
$13.09
$13.09 - $13.09
Precio actual $13.09
SKU RV2-10
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 100 Pieces

VINYL (PVC) INSULATED RING TERMINALS

Ring terminals offer a tight and secure connection in high vibration areas. Simply crimp the ring terminals to your stranded wires to be attached to studs or posts. Vinyl Insulated ring terminals come in a variety of sizes and styles in a brazed or butted format.

Application Info:

Ring terminals (sometimes called split ring terminals): electrical contact is made by the flat surface of the ring, while mechanically they are attached by passing a screw or bolt through them. Their sizes can be determined by the gauge (AWG) of the conducting wire, and the interior and exterior diameters.


Dimensions & Features:

Wire Size: 16-14 AWG
T: 0.8mm (0.03")
L: 30.5mm (1.20")
F: 13.9mm (0.54")
E: 10mm (0.39")
W: 13.6mm (0.54")
D 4.5mm (0.17")
D1: 2.3mm (0.09")
D2: 10.5mm (0.41")
Stud Size: 3/8"
Color: Blue
Terminal Material: Tin-Plated Copper
Insulation Material: Vinyl
Max Electrical Rating: 600 Volts (105oC)
Seam: Butted
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes



Technical Drawing:


Cross References

Cross References:

3M: MVU14-38RK
Burndy: TP14-38
Cembre: BVF-R 38
Elecdirect: R4B38
Panduit: PV14-38R-L
