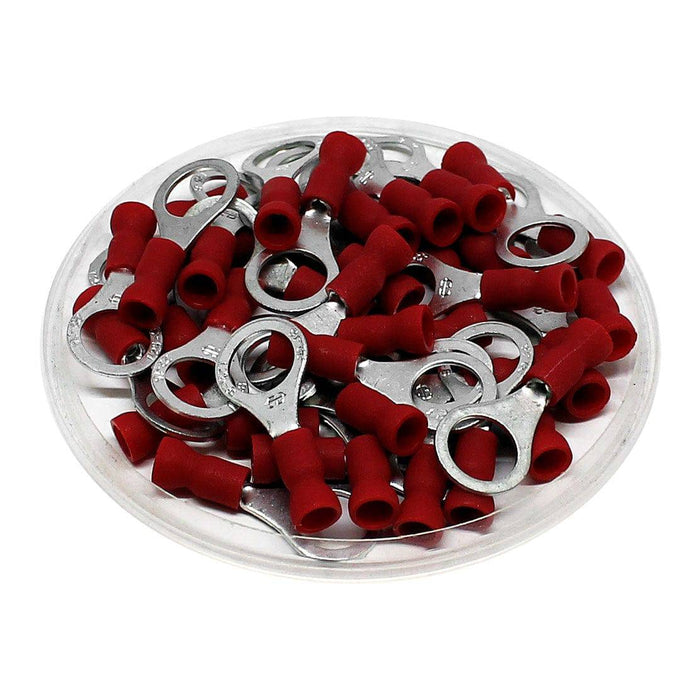

22 to 16 AWG Vinyl Insulated Easy Entry Ring Terminals, 1/4" Stud, Butted Seam, 100 Pieces - RVE1-6

Precio original $10.87 - Precio original $10.87
Precio original
$10.87
$10.87 - $10.87
Precio actual $10.87
SKU RVE1-6
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 100 Pieces

VINYL INSULATED RING TERMINALS

Ring terminals offer a tight and secure connection in high vibration areas. Simply crimp the ring terminals to your stranded wires to be attached to studs or posts. Vinyl Insulated ring terminals come in a variety of sizes and styles in a brazed or butted format.

Application Info:

Ring terminals (sometimes called split ring terminals): electrical contact is made by the flat surface of the ring, while mechanically they are attached by passing a screw or bolt through them. Their sizes can be determined by the gauge (AWG) of the conducting wire, and the interior and exterior diameters.

Dimensions & Features:

Wire Size: 22-16 AWG
Stud Size: 1/4" Stud
Color: Red
T: 0.75mm (0.03")
L: 28mm (1.10")
F: 11mm (0.43")
E: 11.2mm (0.54")
W: 11.6mm (0.46")
D 4.0mm (0.16")
D1: 1.7mm (0.06")
D2: 6.4mm (0.25")
Terminal Material: Tin-Plated Copper
Insulation Material: Vinyl
Max Electrical Rating: 600 Volts (105°C)
Seam: Butted
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Technical Drawing:

Cross References

Cross Reference Parts:
Phoenix Contact: 3240020
Tyco AMP: 130054
