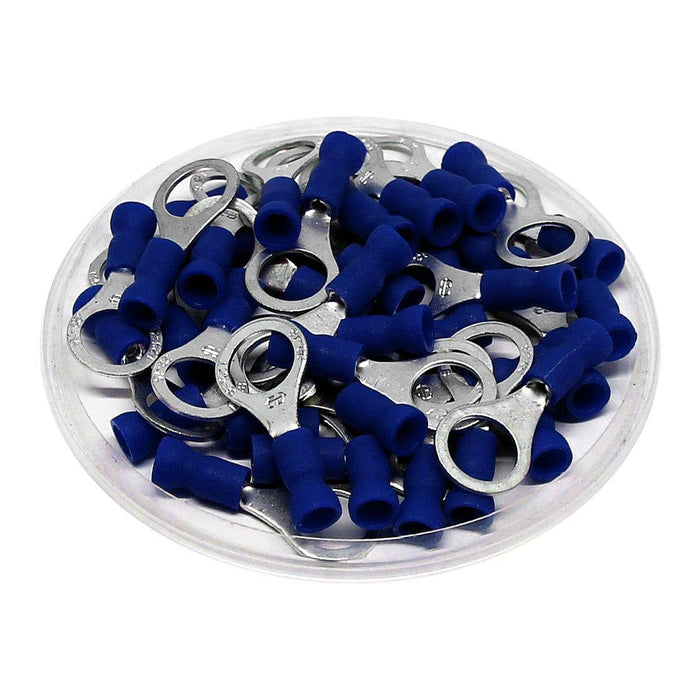

16 to 14 AWG Vinyl Insulated Easy Entry Ring Terminals, 5/16" Stud, Butted Seam, 100 Pieces - RVE2-8

Precio original $12.25 - Precio original $12.25
Precio original
$12.25
$12.25 - $12.25
Precio actual $12.25
SKU RVE2-8
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 100 Pieces

VINYL INSULATED RING TERMINALS

Ring terminals offer a tight and secure connection in high vibration areas. Simply crimp the ring terminals to your stranded wires to be attached to studs or posts. Vinyl Insulated ring terminals come in a variety of sizes and styles in a brazed or butted format.

Application Info:

Ring terminals (sometimes called split ring terminals): electrical contact is made by the flat surface of the ring, while mechanically they are attached by passing a screw or bolt through them. Their sizes can be determined by the gauge (AWG) of the conducting wire, and the interior and exterior diameters.

Dimensions & Features:

Wire Size: 16-14 AWG
Stud Size: 5/16" Stud
Color: Blue
T: 0.8mm (0.031")
L: 28.3mm (1.11")
F: 11.0mm (0.43")
E: 11.5mm (0.45")
W: 12.0mm (0.46")
D 4.5mm (0.177")
D1: 2.3mm (0.091")
D2: 8.4mm (0.33")
Terminal Material: Tin-Plated Copper
Insulation Material: Vinyl
Max Electrical Rating: 600 Volts (105°C)
Seam: Butted
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Technical Drawing:

Cross References

Cross Reference Parts:
Phoenix Contact: 3240026
Tyco AMP: 34163
