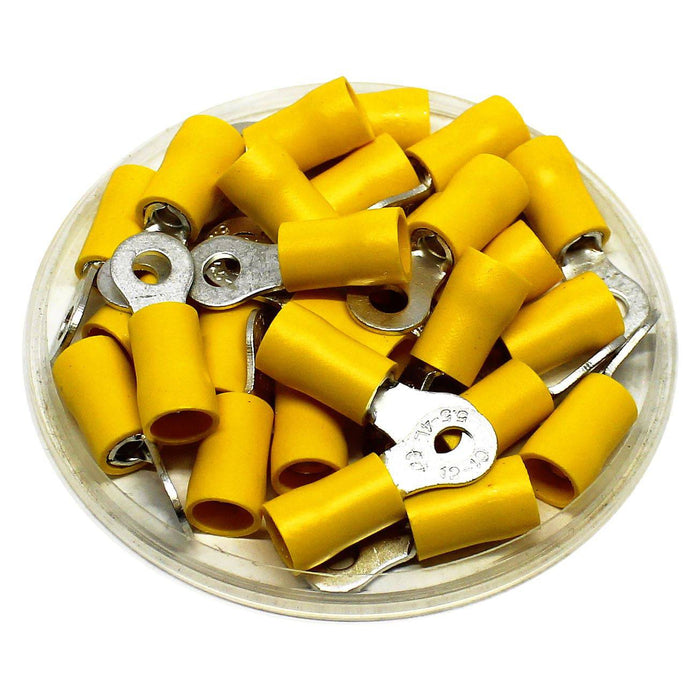

12 to 10 AWG PVC Vinyl Insulated Ring Terminals, #8 Stud, Butted Seam, 50 Pieces - RVL5-4

Precio original $7.25 - Precio original $7.25
Precio original
$7.25
$7.25 - $7.25
Precio actual $7.25
SKU RVL5-4
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 50 Pieces

VINYL (PVC) INSULATED RING TERMINALS

Ring terminals offer a tight and secure connection in high vibration areas. Simply crimp the ring terminals to your stranded wires to be attached to studs or posts. Vinyl Insulated ring terminals come in a variety of sizes and styles in a brazed or butted format.

Application Info:

Ring terminals (sometimes called split ring terminals): electrical contact is made by the flat surface of the ring, while mechanically they are attached by passing a screw or bolt through them. Their sizes can be determined by the gauge (AWG) of the conducting wire, and the interior and exterior diameters.

Dimensions & Features:

Wire Size: 12-10 AWG
Stud Size: #8 Stud
Seam: Butted
Color: Yellow
T: 1mm (0.04")
L: 26mm (1.02")
F: 8.3mm (0.33")
E: 13mm (0.51")
W: 9.5mm (0.37")
D 6.4mm (0.25")
D1: 3.4mm (0.07")
D2: 4.3mm (0.17")
Terminal Material: Tin-Plated Copper
Insulation Material: Vinyl
Max Electrical Rating: 600 Volts (105°C)
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes



Technical Drawing:

Cross References

Cross References:

3M: MVU10-8RK
Burndy: TP10-8
Cembre: YVF-R 8
Eclipse: 902-445-10
Elecdirect: R4C8
McMaster-Carr: 7113K48
Panduit: PV10-8R-L
Tyco AMP: 34853
Weidmuller: 1492110000
