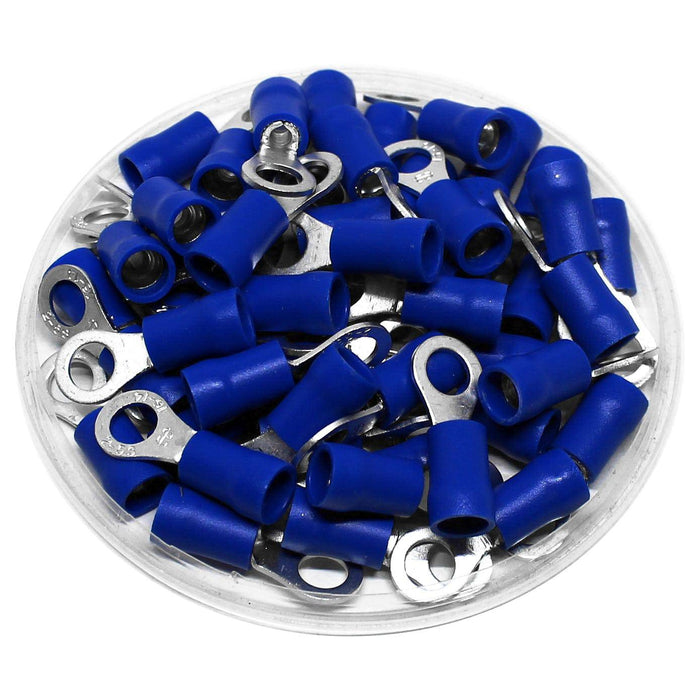

16 to 14 AWG PVC Vinyl Insulated Ring Terminals, #10 Stud, Butted Seam, 100 Pieces - RVS2-5
Precio original
$9.44
-
Precio original
$9.44
Precio original
$9.44
$9.44
-
$9.44
Precio actual
$9.44
SKU RVS2-5
Disponibilidad:
en stock, listo para ser enviado
VINYL (PVC) INSULATED RING TERMINALS
Ring terminals offer a tight and secure connection in high vibration areas. Simply crimp the ring terminals to your stranded wires to be attached to studs or posts. Vinyl Insulated ring terminals come in a variety of sizes and styles in a brazed or butted format.
Application Info:
Ring terminals (sometimes called split ring terminals): electrical contact is made by the flat surface of the ring, while mechanically they are attached by passing a screw or bolt through them. Their sizes can be determined by the gauge (AWG) of the conducting wire, and the interior and exterior diameters.
Dimensions & Features:
| Wire Size: | 16-14 AWG |
| Stud Size: | #10 Stud |
| Color: | Blue |
| T: | 0.8mm (0.03") |
| L: | 21.8mm (0.86") |
| F: | 7.8mm (0.307") |
| E: | 10mm (0.39") |
| W: | 8.5mm (0.335") |
| D | 4.5mm (0.177") |
| D1: | 2.3mm (0.091") |
| D2: | 5.3mm (0.209") |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Vinyl |
| Max Electrical Rating: | 600 Volts (105oC) |
| Seam: | Butted |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross Reference Parts:3M: MVU14-10R-LK
Automation Direct: BM-00225
Burndy: TP14-10
Cembre: BVF-R 10
Eclipse: 902-443-10
Elecdirect: R4B10
Leidos: 20-22383
McMaster-Carr: 7113K24
Newark: 14AC2058
Panduit: PV14-10R-C - PV14-10R-M
Thomas Betts: 14RB-10
Tyco AMP: 32960
Weidmuller: 1492310000
