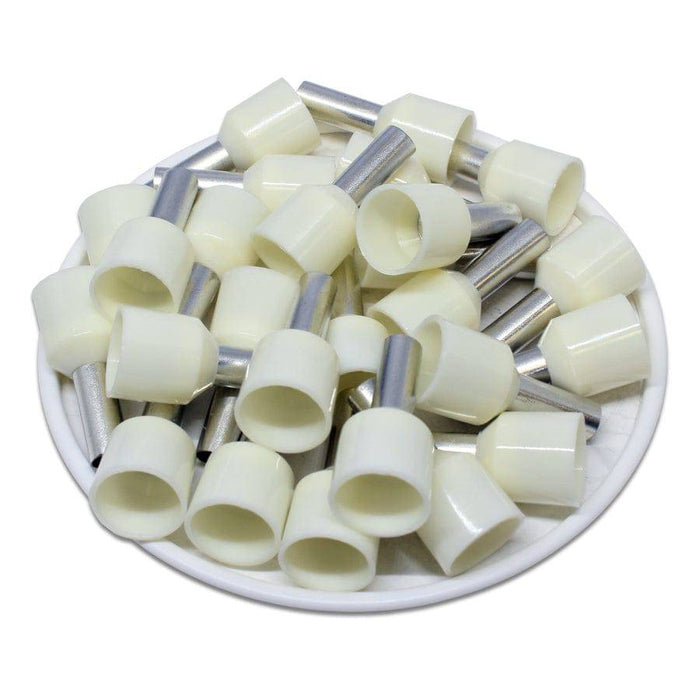

6 AWG (12mm Pin) Short Circuit Ferrules - White

Precio original $23.00 - Precio original $23.00
Precio original
$23.00
$23.00 - $23.00
Precio actual $23.00
SKU SC160012T
Disponibilidad:
en stock, listo para ser enviado
Piece Quantity: 100 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools. Short circuit ferrules provide wider polypropylene sleeves that create a greater distance between the wire and insulation sleeves. This prevents electrical arcs and potential short circuits.

Dimensions & Features:

Wire Size: 6 AWG
Color: White
L1: 25.8mm (1.02")
L2: 12mm (.47")
D: 6.4mm (.25")
D1: 5.8mm (.23")
D2: 12.2mm (.48")
Material: Tin Plated Copper
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes
Max Electrical Rating: 105°C 600 Volts
Max Electrical Current: 95A

Product Drawing:

Cross References

Cross Reference Parts:

None

Documents

None available


Videos

Watch to see how to crimp a wire ferrule!
