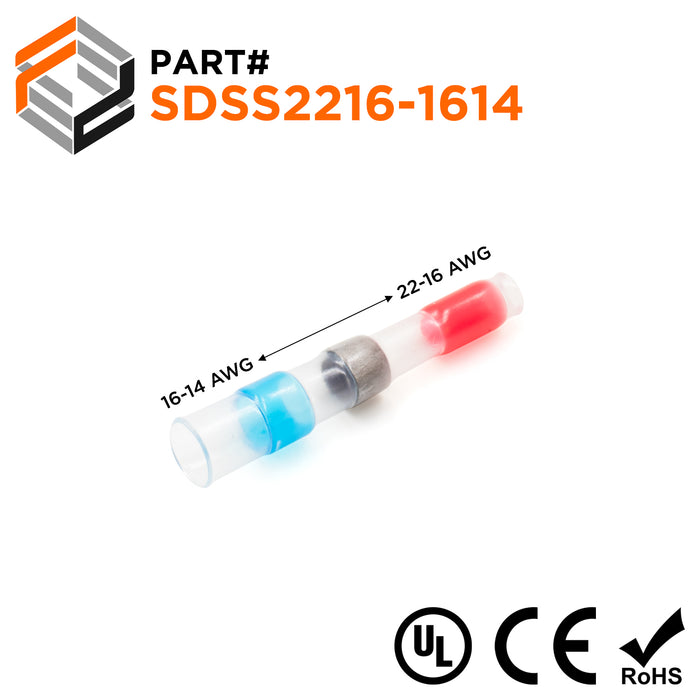

SDSS2216-1614 - 22-16 to 16-14 AWG Heat Shrinkable Step-Down Solder Sleeve, Red/Blue, 25 Pieces
Precio original
$12.54
-
Precio original
$12.54
Precio original
$12.54
$12.54
-
$12.54
Precio actual
$12.54
SKU SDSS2216-1614
Quantity: 25 Pieces
Disponibilidad:
en stock, listo para ser enviado

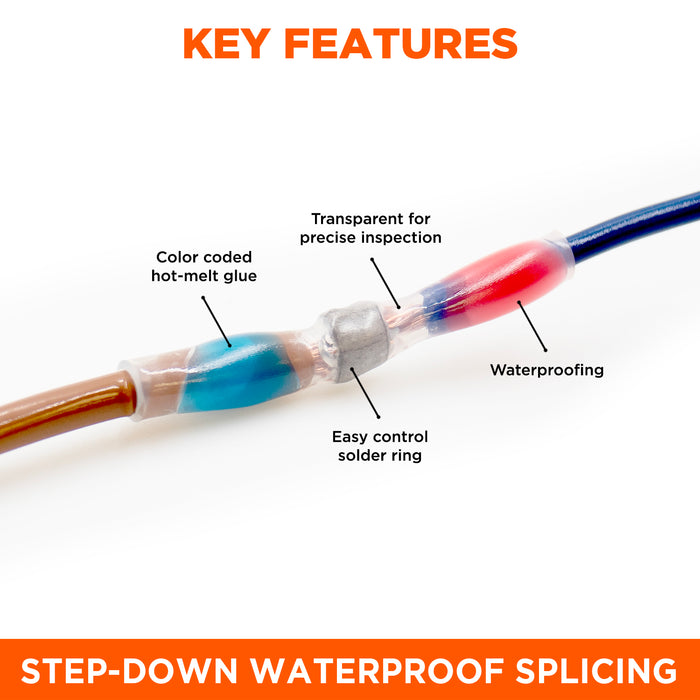

Heat shrinkable step-down solder sleeves are a highly effective solution for ensuring strong, secure, and reliable electrical connections, especially when working with varying wire sizes and requiring professional-grade results. They provide sealed protection against environmental extremities as well as insulate, seal and protect joints from physical abuse, abrasion, water, salt, and other corrosive elements.
Dimensions & Features:
| Wire Size: | 22-16 to 16-14 AWG |
| Color: | Red / Blue |
| L: | 40mm ± 1.5 (1.57") |
| A (Min): | 2.7mm (0.11") |
| B (Min): | 1.8mm (0.07") |
| B (Max): |
4.5mm (0.18") |
| C (Min): | 1.2mm (0.05") |
| C (Max): |
4.5mm (0.18") |
| Insulation Material: | Polyolefin |
| Temperature Rating: | -55°C to 125°C |
Product Drawing:
Cross References
Cross Reference Parts:
None
