SK702UL - 22 to 10 AWG Wire Ferrules Deluxe Kit + FD2810UL Tool, 3,450-Pieces, Series T, 1 Kit
Agotado
Precio original
$225.00
-
Precio original
$225.00
Precio original
$225.00
$225.00
-
$225.00
Precio actual
$225.00
SKU SK702UL
Quantity: 1 Kit
Disponibilidad:
Agotado

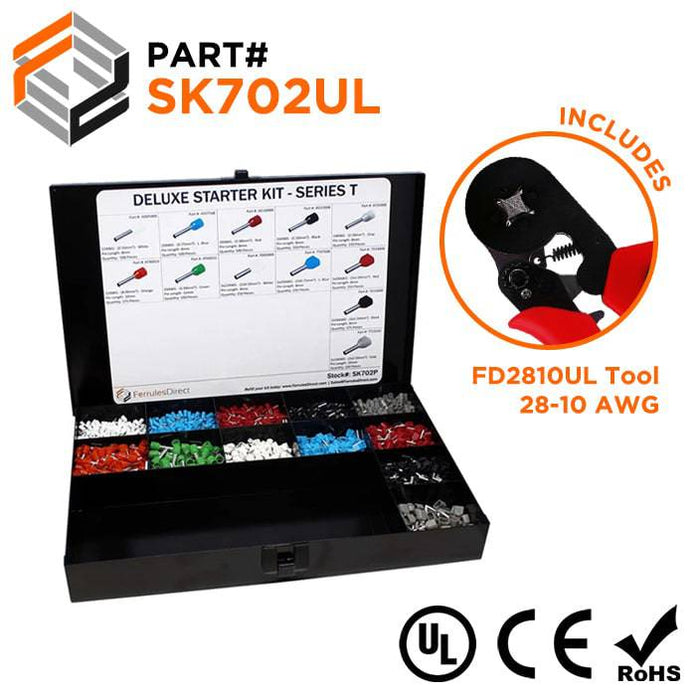

SK702 Deluxe Wire Ferrules Kit with FD2810SQ
Our deluxe wire ferrules starter kit comes with a 3,450-piece selection of single single insulated wire ferrules from 22 to 10 AWG and twin wire ferrules from 22 to 14 AWG in the "Series T" color sequence. Also included is the FD2810UL self-adjusting ratcheting crimping tool that terminates ferrules from 28 AWG to 10 AWG in the square crimping shape. All of this is housed inside of a heavy duty powder coated steel box with latch. Kit box dimensions: 13"x7"x1.5" (LxWxH)
| Contents of Kit - Quick Refill Information | ||||
| Stock # | Color | Size | Stripping Length | Quantity |
| Single Insulated Ferrules | ||||
| AD05008 | White | 0.50mm2 (22AWG) | 8mm | 500 |
| AT07508 | Light Blue | 0.75mm2 (20AWG) | 8mm | 500 |
| AD10008 | Red | 1.00mm2 (18AWG) | 8mm | 500 |
| AD15008 | Black | 1.50mm2 (16AWG) | 8mm | 350 |
| AT25008 | Gray | 2.50mm2 (14AWG) | 8mm | 250 |
| AT40010 | Orange | 4.00mm2 (12AWG) | 10mm | 200 |
| AT60012 | Green | 6.00mm2 (10AWG) | 12mm | 100 |
| Twin Wire Ferrules | ||||
| TD05008 | White | 2x0.50mm2 (2x22AWG) | 8mm | 250 |
| TT07508 | Light Blue | 2x0.75mm2 (2x20AWG) | 8mm | 250 |
| TD10008 | Red | 2x1.00mm2 (2x18AWG) | 8mm | 250 |
| TD15008 | Black | 2x1.50mm2 (2x16AWG) | 8mm | 200 |
| TT25010 | Gray | 2x2.50mm2 (2x14AWG) | 10mm | 100 |
Box & Tool Information
| ESB13P | Black | 13 Compartments | -- | 1 |
| FD2810UL | Red/Black | 28 to 10 AWG | -- | 1 |
