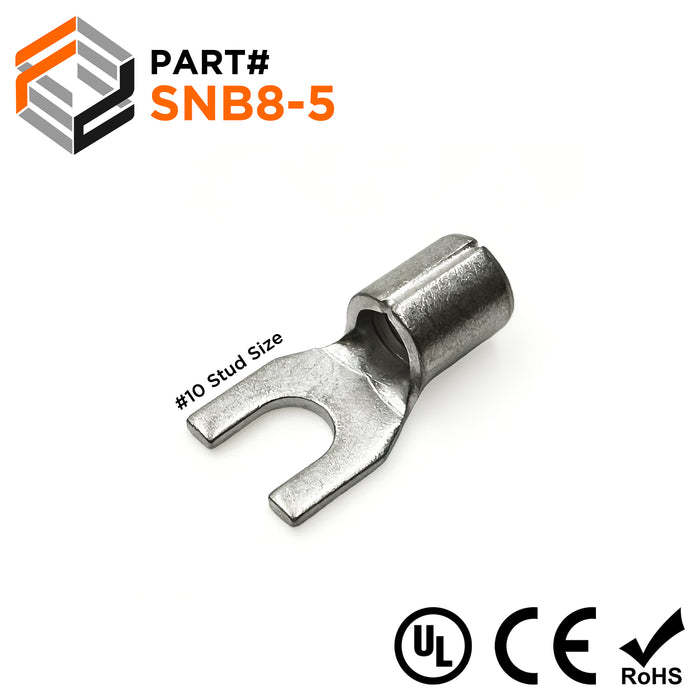

8 AWG Non Insulated Spade Terminals, #10 Stud, UL Approved, 25 Pieces - SNB8-5

Precio original $6.60 - Precio original $6.60
Precio original
$6.60
$6.60 - $6.60
Precio actual $6.60
SKU SNB8-5
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 25 Pieces

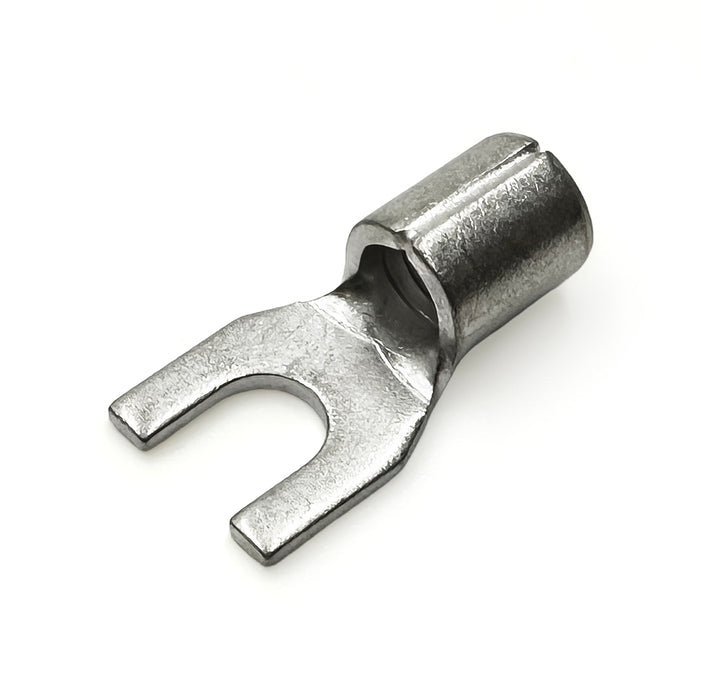

NON INSULATED SPADE TERMINALS

Non-insulated spade terminals lock in place for tight and secure connection in cramped spaces. They allow the user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength.


Dimensions & Features:

Wire Size: 8 AWG
Seam: Brazed
Stud Size: #10
Terminal Material: Tin-Plated Copper
Max Electrical Current: 70AMP
T: 1.2mm (0.04")
L: 24.5mm (0.96)")
F: 5.7mm (0.22")
E: 8.5mm (0.33")
W: 12.0mm (0.47")
D: 7.2mm (0.28")
D1: 4.5mm (0.17")
D2: 5.3mm (0.21")
UL Recognized: No
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None:

Technical Drawing

Click to view product spec sheet:
