SRB-2P4 - Strain Relief Bushings - Black
Precio original
$0.02
-
Precio original
$0.02
Precio original
$0.02
$0.02
-
$0.02
Precio actual
$0.02
SKU SRB-2P4
Disponibilidad:
en stock, listo para ser enviado

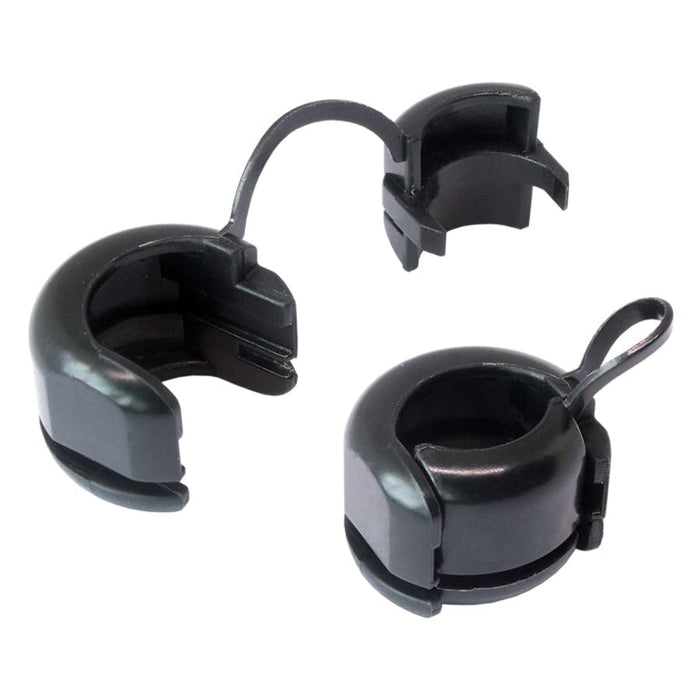

Our UL registered Strain Relief Bushings easily install into enclosures openings to protect cables by absorbing the forces of push, pull, and twisting.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Mounting Hole (A): | 9.5mm (0.37″) |
| Rotation Prevention (B): | 8.7mm (0.34″) |
| Cable Size (C): | 3mm-5.6mm (0.12″ – 0.22″) |
| Body Length (D): | 10.3mm (0.41″) |
| Maximum Thickness (E): | 1.6mm (0.063″) |
| UL Wire: | SPT-1 |
| Size Number: | 18/2 |
| Cross Section: | Flat |
| Material: | Nylon |
| Color: | Black |
| UL Recognized: | Yes |
Product Drawing:
Cross References
Cross References:None:
Documents
Click to view product spec sheet:Videoes
Click to view product spec sheet:
