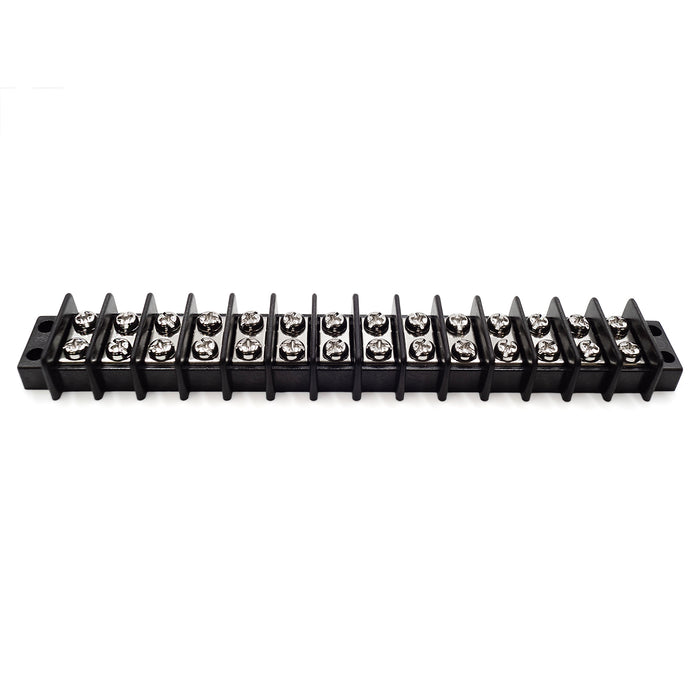

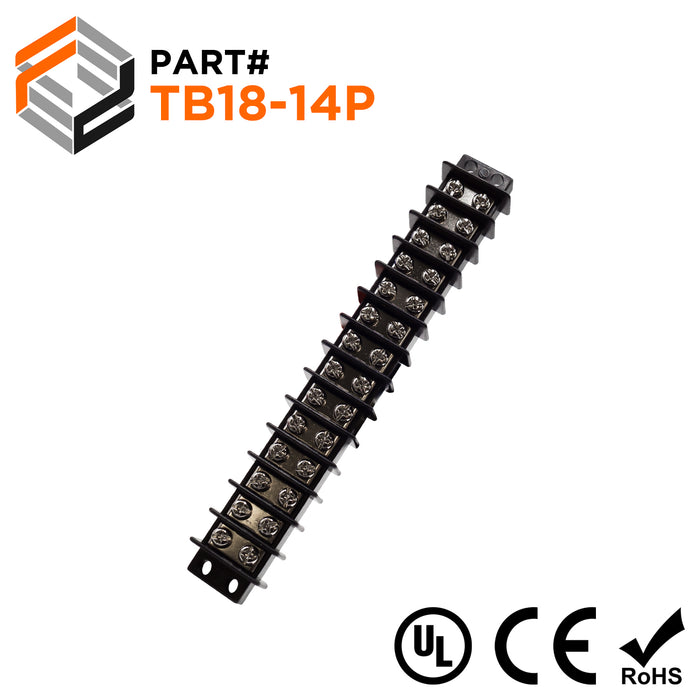

Barrier Strip Terminal Block, Terminal Strip, 14 Pole, Double Row, 20A, 300V, UL Approved - TB18-14P
Precio original
$7.28
-
Precio original
$7.28
Precio original
$7.28
$7.28
-
$7.28
Precio actual
$7.28
SKU TB18-14P
Disponibilidad:
en stock, listo para ser enviado
Terminal strips are used to fasten or terminate wire. This can be done by placing bare/exposed wire under the screws/poles and screwing them down. However, use of a wire ferrule or fork/spade terminal is encouraged to prevent the wire from fraying.
Dimensions & Features:
Product Drawing:
Dimensions & Features:
Number of Poles: | 14 Poles |
Pitch: | 11.1mm (0.44") |
A: | 166.6mm (6.56") |
B: | 174.8mm (6.88") |
Material: | Thermoplastic UL94-V0 |
Electrical Rating: | 300 Volts |
Amp Rating: | 20AMP |
UL Recognized: | Yes |
CE Certified: | Yes |
RoHS Compliant: | Yes |
Product Drawing:
