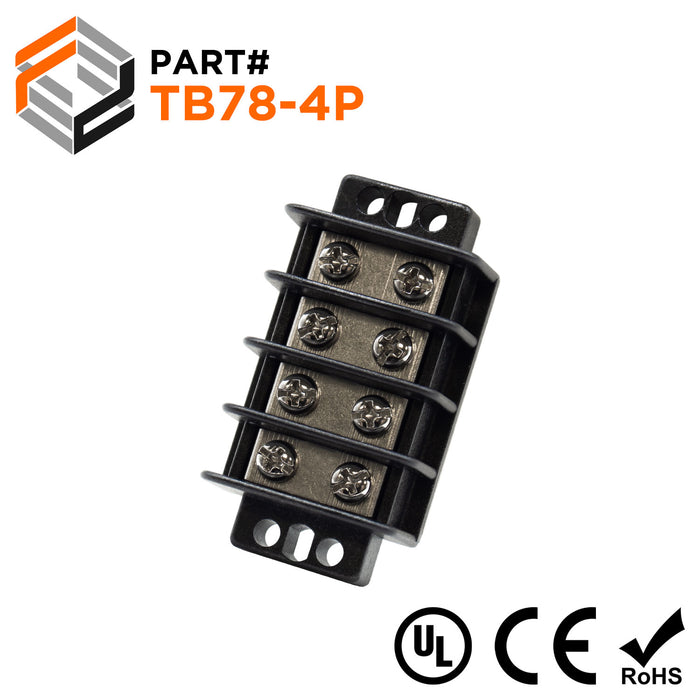

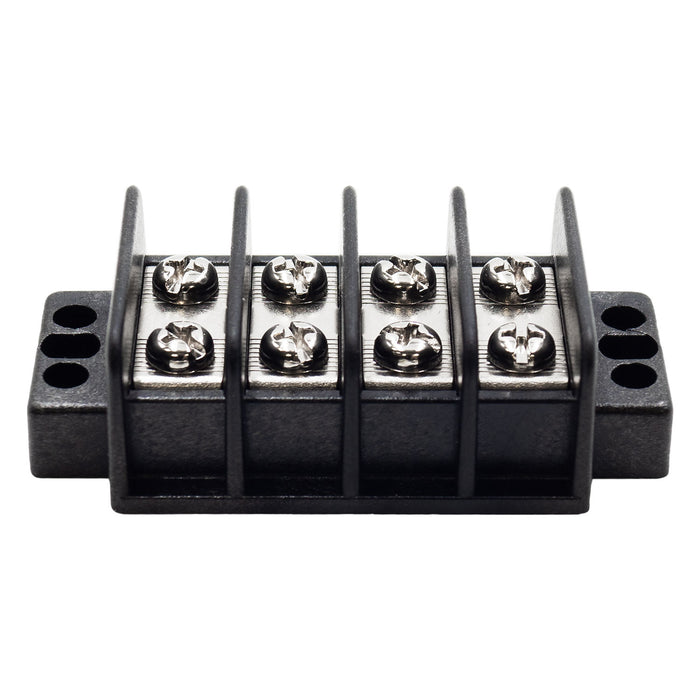

TB78-4P - 4-Pole Double Row Terminal Strip - 20A/300V

Precio original $1.76 - Precio original $1.76
Precio original
$1.76
$1.76 - $1.76
Precio actual $1.76
SKU TB78-4P
Disponibilidad:
en stock, listo para ser enviado
Piece Quantity: 1 Piece
true
Terminal strips are used to fasten or terminate wire. This can be done by placing bare/exposed wire under the screws/poles and screwing them down. However, use of a wire ferrule or fork/spade terminal is encouraged to prevent the wire from fraying.

Dimensions & Features:

Number of Poles: 4 Poles
Pitch: 11.1mm (0.44")
A: 55.6mm (2.19")
B: 63.5mm (2.50")
Material: Thermoplastic UL94-V0
Electrical Rating: 300 Volts
Amp Rating: 20AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
