UC1.5B - Strap Type Cable Clamps - 22.6 x 10mm (0.89 x 0.39") - Black
Precio original
$3.74
-
Precio original
$3.74
Precio original
$3.74
$3.74
-
$3.74
Precio actual
$3.74
SKU UC1.5B
Disponibilidad:
en stock, listo para ser enviado

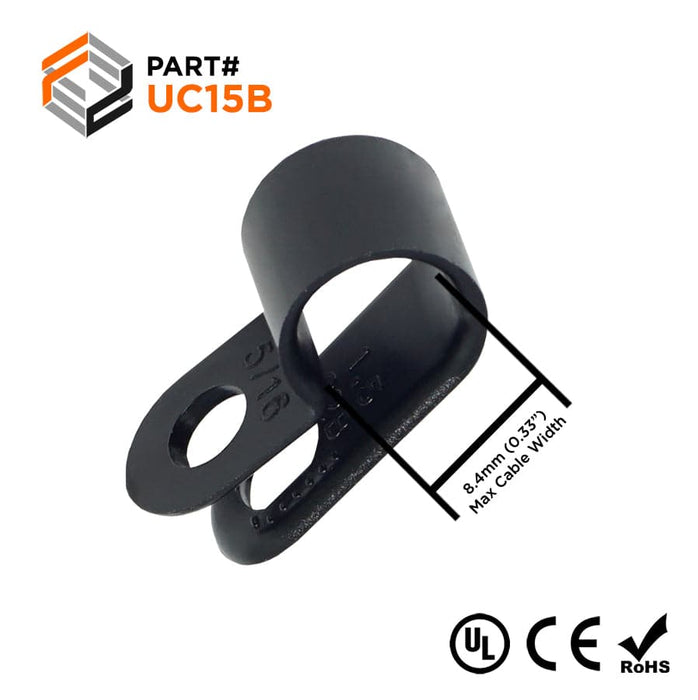

Strap-type cable clamps are designed to hold cables, tubes, and other components in appliances and electronics. To apply, just clamp down on loose cables and screw into the chassis.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Size: | 22.6 x 10mm (0.89 x 0.39") |
| Color: | Black |
| A: | 5.0mm (0.20") |
| B: | 11.2mm (0.44") |
| C: | 10mm (0.39") |
| D: | 8.4mm (0.33") |
| E: | 22.6mm (0.89") |
| F: | 1.15mm (0.045") |
| Bundle Diameter: | 7.9mm (5/16") |
| Material: | UL Approved 94UV-2 Nylon 6/6 |
| Service Temperature: | -40°F to 185°F (-40°C to 85°F) |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!
