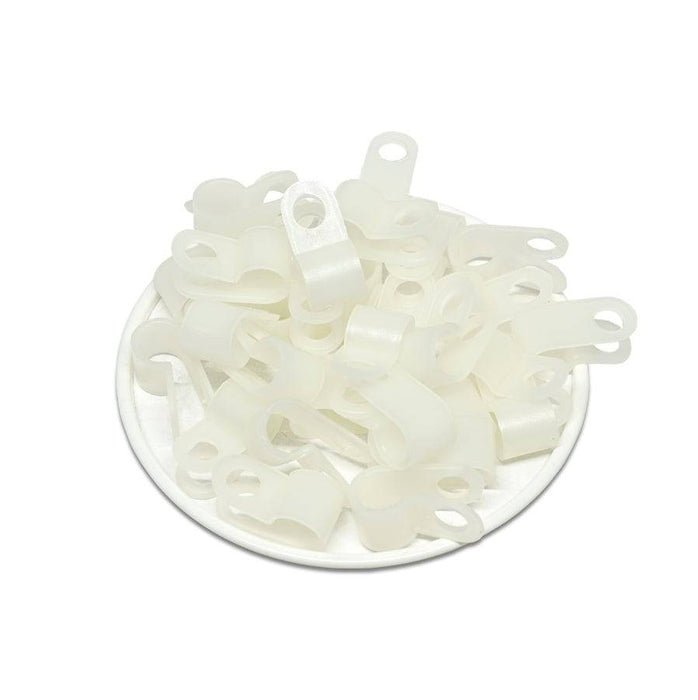

UC1N - Strap Type Cable Clamps - 20 x 10.1mm (0.79 x 0.40") - Natural

Precio original $3.08 - Precio original $3.08
Precio original
$3.08
$3.08 - $3.08
Precio actual $3.08
SKU UC1N
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 100 Pieces
Strap-type cable clamps are designed to hold cables, tubes, and other components in appliances and electronics. To apply, just clamp down on loose cables and screw into the chassis.

Dimensions & Features:

Size: 20 x 10.1mm (0.79 x 0.40")
Color: Natural
A: 4.6mm (0.18")
B: 10.4mm (0.41")
C: 10.1mm (0.40")

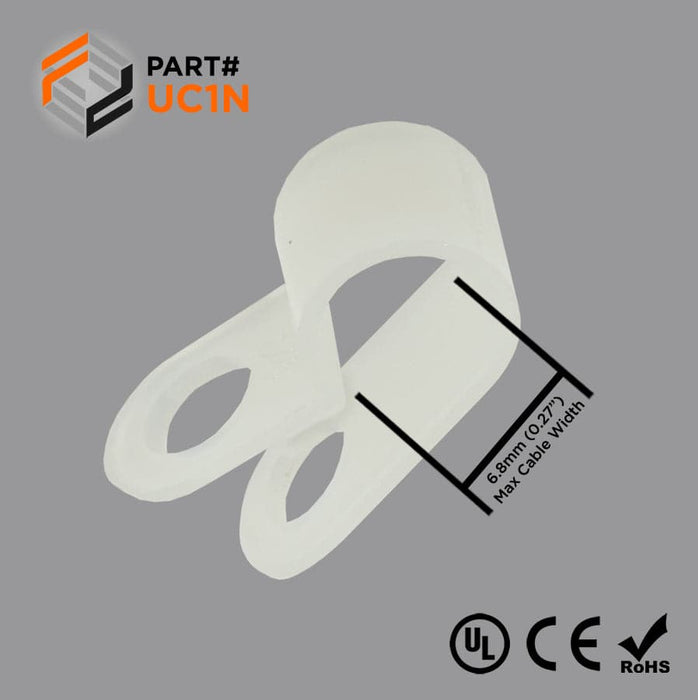

D: 6.8mm (0.27")
E: 20mm (0.79")
F: 1.10mm (0.04")
Bundle Diameter: 6.4mm (1/4")
Material: UL Approved 94UV-2 Nylon 6/6
Service Temperature: -40°F to 185°F (-40°C to 85°F)
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
