UC3N - Strap Type Cable Clamps - 25 x 9.8mm (1 x 0.39") - Natural

Precio original $4.62 - Precio original $4.62
Precio original
$4.62
$4.62 - $4.62
Precio actual $4.62
SKU UC3N
Disponibilidad:
en stock, listo para ser enviado

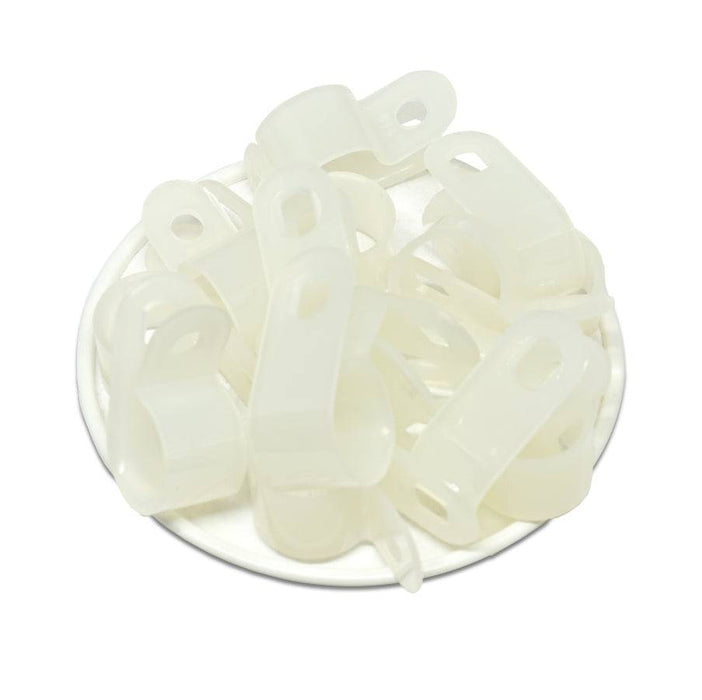

Pack Quantity: 100 Pieces
Strap-type cable clamps are designed to hold cables, tubes, and other components in appliances and electronics. To apply, just clamp down on loose cables and screw into the chassis.

Dimensions & Features:

Size: 25 x 9.8mm (1 x 0.39")
Color: Natural
A: 3.3mm (0.13")
B: 14.8mm (0.58")
C: 9.8mm (0.39")
D: 11.8mm (0.46")
E: 25.1mm (0.99")
F: 0.9mm (0.035")
Material: UL Approved 94UV-2 Nylon 6/6
Service Temperature: -40°F to 185°F (-40°C to 85°F)
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None
