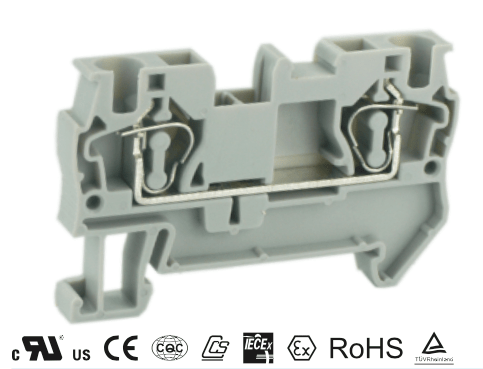

UJ5-4 - 24 to 10 AWG, Spring Cage Terminal Block, 800v, UL Approved, Gray

Precio original $0.62 - Precio original $0.62
Precio original
$0.62
$0.62 - $0.62
Precio actual $0.62
SKU UJ5-4
Disponibilidad:
en stock, listo para ser enviado

SPRING CAGE TERMINAL BLOCK

Introducing the UJ5-4, the UL approved terminal block with spring cage technology for secure and efficient wire connections. It's perfect for a variety of applications and can accommodate 24 to 10 AWG wires.

TECHNICAL DATA:

Wire Range (Stranded): 24 to 10 AWG (0.20mm to 6.00mm)
Wire Range (Solid): 24 to 10 AWG (0.20mm to 6.00mm)
Stripping Length: 0.39" (10mm)
Connection Method: Spring-Cage Connection
Operating Temperature: -40°F to +221°F (-40°C to +105°C)
Ambient Temperature: -77°F to +140°F (-25°C to +60°C)
Relative Humidity: 30% to 90%
Connection Standard: IEC 60947-7-1



DIMENSIONS:

Width: 2.20" (55.8mm)
Thickness: 0.24" (6.2mm)
Height: 1.39" (35.2mm)



PRODUCT PARAMETERS:

Number of Connections: 2
Rated Cross Section (mm): 10
Color: Gray
Insulation Material: PA (Nylon)
Flame Retardant Grade: V0 (UL94)
Rated Voltage (V): 800v
Rated Current (A): 31a
Temperature of Insulation Material: -40°F to +257°F (-40°C to +125°C)
Wire Feed: Above the terminal


COMPATIBLE ACCESSORIES:

Items with links are currently available for purchase. E-mail us today for availability of non-stock items.

Mounting Rail: TH35-7.5 & TH35-15
End Cover: UJ5-4G
Partition Plate: UJ5-1.5-4FG
Jumpers (2 Position): UFBS2-6
Jumpers (3 Position): UFBS3-6
Jumpers (4 Position) UFBS4-6
Jumpers (5 Position): UFBS5-6
Jumpers (10 Position): UFBS10-6
Center Marker Strip (Blank): UZB6-10(Blank)
Center Marker Strip (Horizontal): UZB6-10(Horizontal)
Center Marker Strip (Vertical): UZB6-10(Vertical)
Side Marker Strip (Blank): UBFM6(Blank)
Side Marker Strip (Horizontal): UBFM6(Horizontal)
Side Marker Strip (Vertical): UBFM6(Vertical)
Screwdriver: YB0.6x3.5


MOUNTING RAIL TYPE:

DOCUMENT FILE:



COMPARE TO THESE PARTS:
