HNB5-3.7 - 12 to 10 AWG Non Insulated Hook Terminals, #6 Stud, UL Recognized, 100 Pieces
Original price
$16.95
-
Original price
$16.95
Original price
$16.95
$16.95
-
$16.95
Current price
$16.95
SKU HNB5-3.7
Quantity: 100 Pieces
Availability:
in stock, ready to be shipped

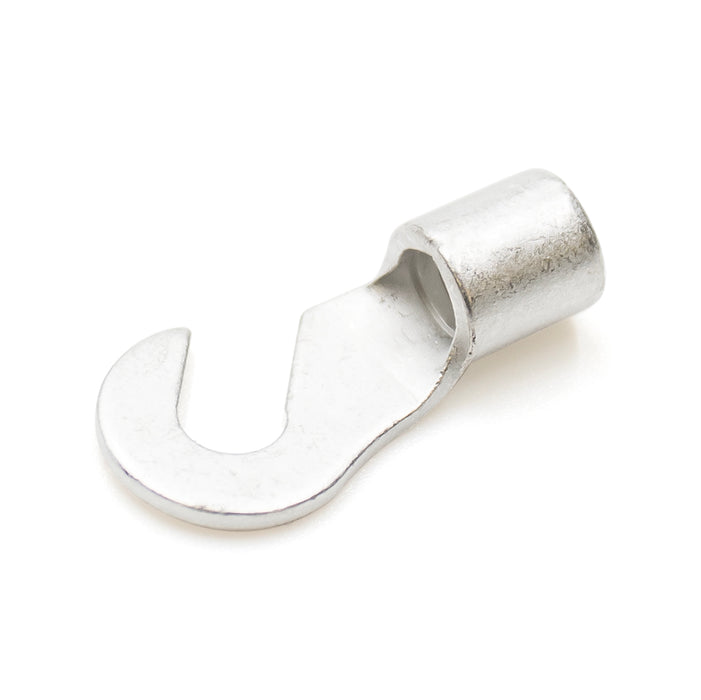

NON INSULATED HOOK TERMINALS
Hook terminals combine the security of a ring terminal with the practicality of fork terminals. They allow the end user to quickly and easily terminate a connection without the need to remove the fastening screw.
INFORMATION & SPECIFICATIONS:
| Wire Range: | 12-10 AWG |
| Stud Size: | #6 Stud |
| T: | 0.03" (1.00mm) |
| L: | 0.74" (18.9mm) |
| F: | 0.37" (9.5mm) |
| E: | 0.23" (6.0mm) |
| W: | 0.37" (9.5mm) |
| D: | 0.22" (5.6mm) |
| D1: | 0.13" (3.4mm) |
| D2: | 0.14" (3.7mm) |
| Terminal Material: | Tin-Plated Copper |
| Seam: | Brazed |
| Temperature Rating: | 105°C - 600 Volts |
| AMP Rating: | 9-17AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
