POWERPOLE STYLE MODULAR BATTERY CONNECTORS

Modular power connectors are designed for use with molded case circuit breakers, panel board equipment, and meter sockets. They provide reliable low resistance non-gendered termination of both aluminum and copper conductors.

This open barrel style battery connector comes on a reel of 3,000 pieces.

DIMENSIONS & FEATURES:

Wire Range:	16 to 12 AWG
L	0.669" (17.0mm)
E	0.236" (6.0mm)
D1:	0.197" (5.0mm)
D:	0.197" (5.0mm)
Terminal Material:	Copper Plate
Current Rating:	18 to 35 AMP (16 to 12 AWG)
CE Certified:	Yes
RoHS Compliant:	Yes

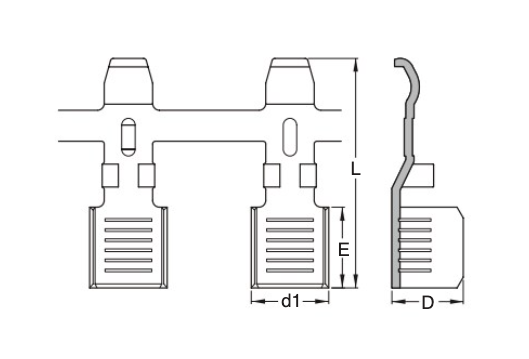

DRAWING:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
