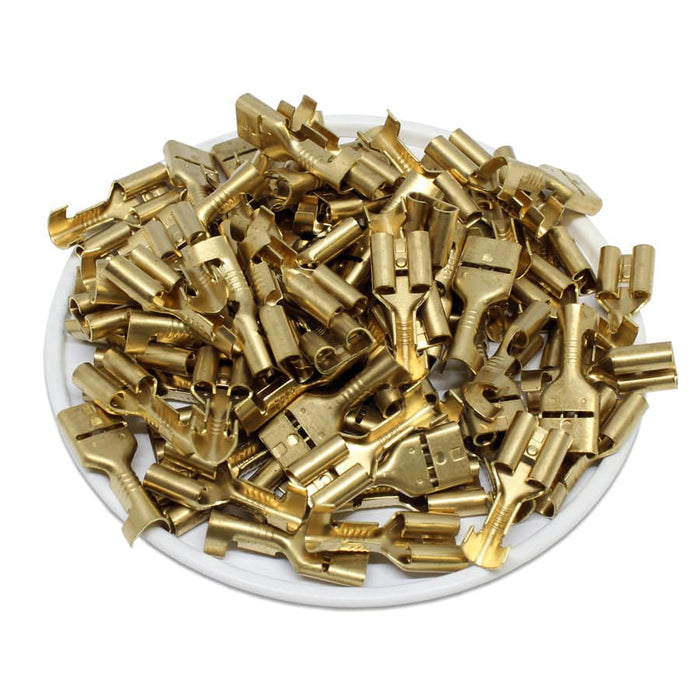

608LR - Open Barrel Female Quick Disconnect - 22-18 AWG - 6.35x0.8mm Tab
Original price
$1.04
-
Original price
$7.42
Original price
$7.42
$1.04
-
$7.42
Current price
$7.42
SKU 608LR
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Open barrel terminals (Faston B Type Terminals) have two sets of open "teeth" that bite down into the wire and insulation to secure and hold onto them. This gives a much tighter hold than a closed barrel terminal would, making it ideal for applications that would cause the wire to move around or be pulled often.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
Wire Size: | 22-18 AWG |
L: | 19mm (0.75") |
F: | 7.4mm (0.29") |
W: | 6.5mm (0.26") |
D: | 5.4mm (0.21") |
D1: | 2.9mm (0.11") |
T: | 3.2mm (0.13") |
Nema Tab: | 0.032 x 0.250" (0.8 x 6.35mm) |
Material: | Brass - Untinned |
Surface Treatment: | Standard Chemical Treatment |
CE Certified: | Yes |
RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
