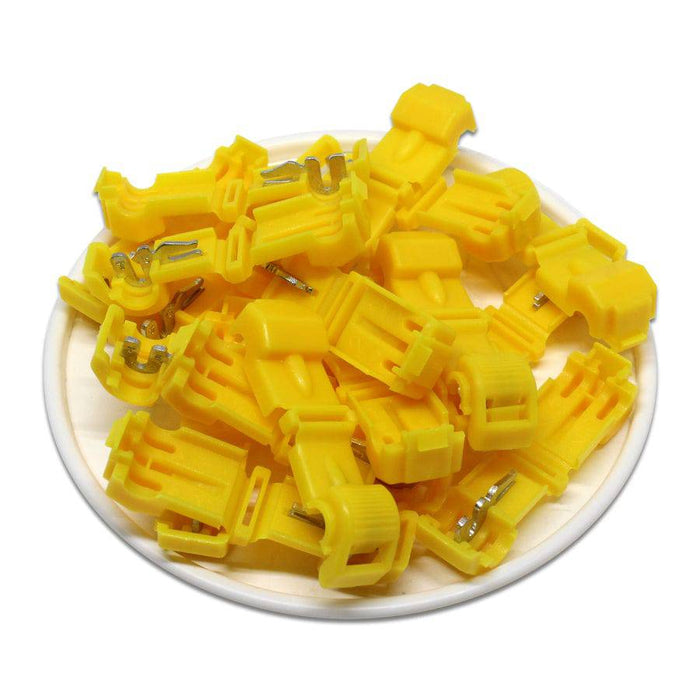

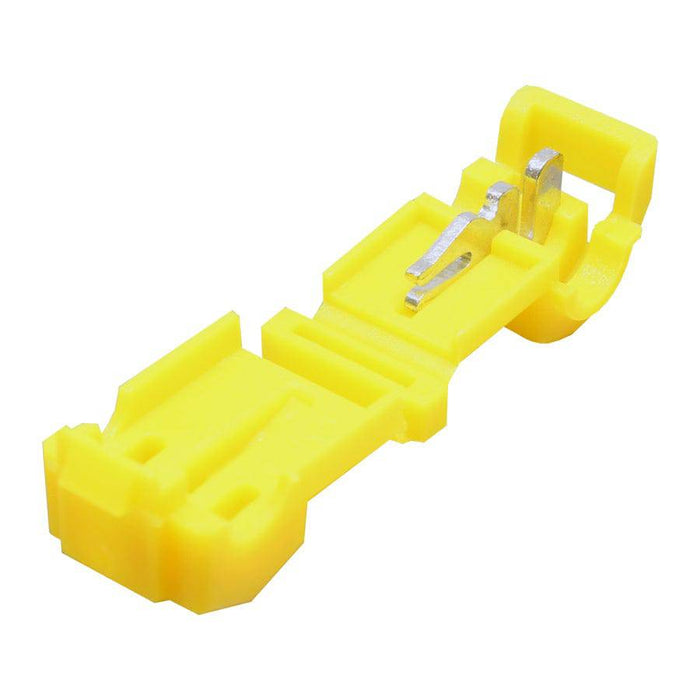

878206 - Quick Splice Connector - 12-10AWG
Original price
$6.70
-
Original price
$6.70
Original price
$6.70
$6.70
-
$6.70
Current price
$6.70
SKU 878206
Availability:
in stock, ready to be shipped
Quick splice connectors are a fast and easy way to splice into an existing wire. No stripping of the wires is necessary. Simply insert both wires into the splice, squeeze down on the metal insert with pliers, and close the cap
Dimensions & Features:
None
Dimensions & Features:
| Wire Size: | 12AWG |
| Color: | Yellow |
| L: | 37mm (1.45") |
| W: | 9.8mm (0.38") |
| Terminal Material: | Phosphor Bronze |
| Insulation Material: | Nylon |
| Max Electrical Rating: | 35AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Cross References
Cross Reference Parts:None
