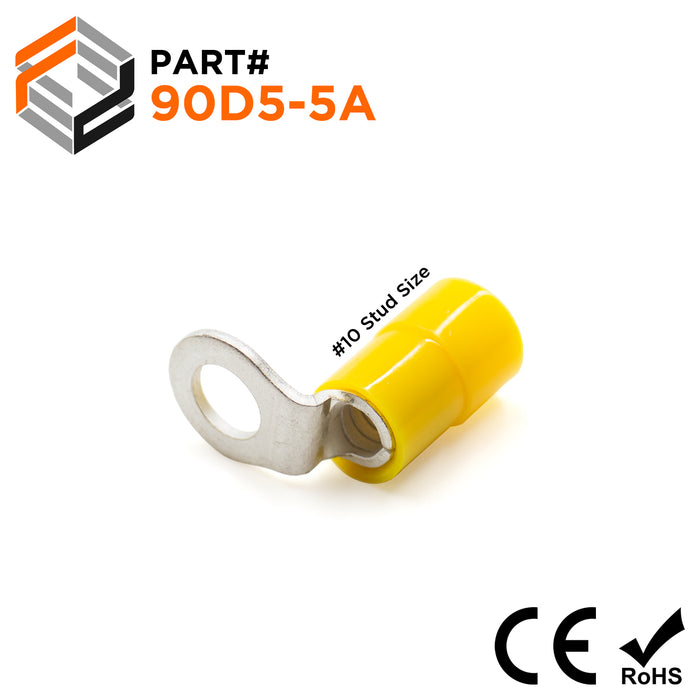

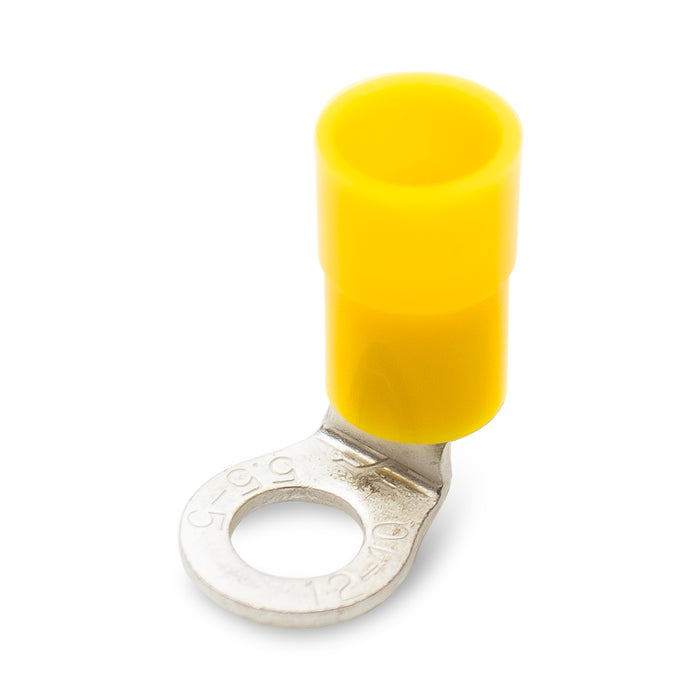

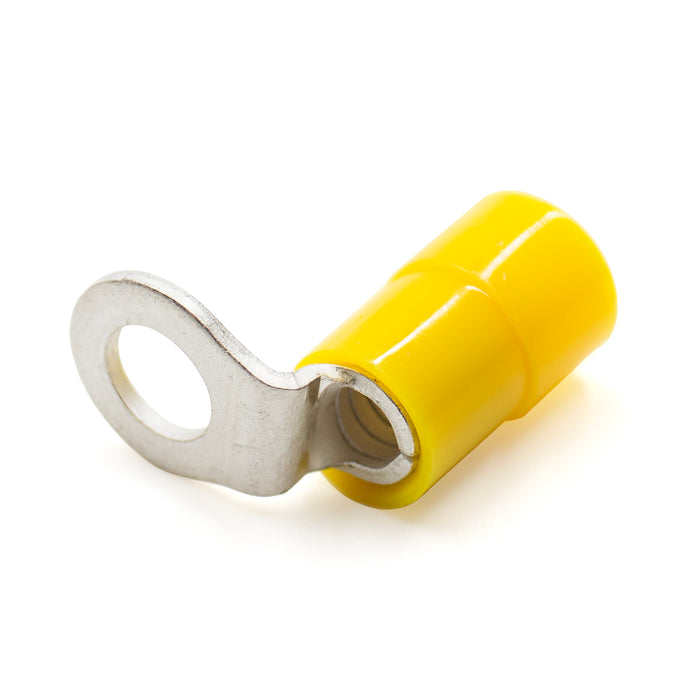

90D5-5A - 12 to 10 AWG Right Angle Nylon Ring Terminals, #10 Stud, 50 Pieces
Sold out
Original price
$16.30
-
Original price
$16.30
Original price
$16.30
$16.30
-
$16.30
Current price
$16.30
SKU 90D5-5A
Quantity: 50 Pieces
Availability:
Out of stock

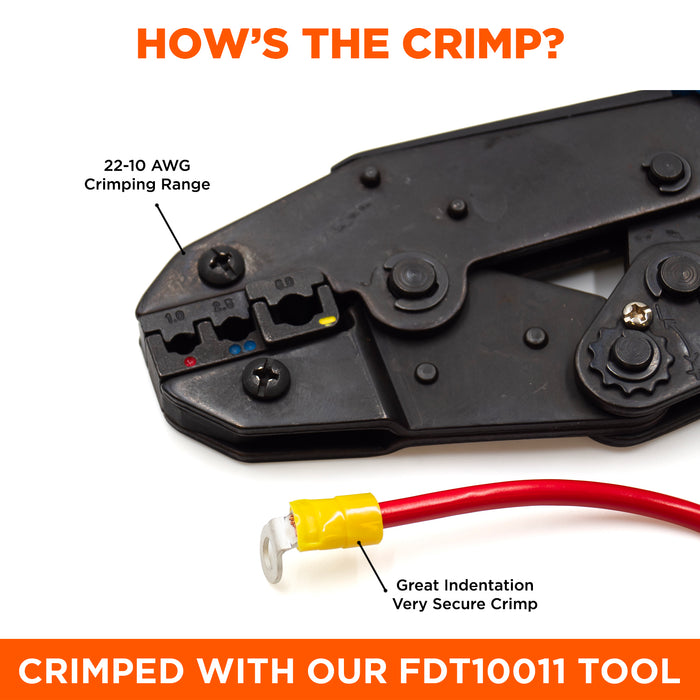

Ring tongue design offers a tight and secure connection in high vibration areas, Nylon insulation sleeve is securely fastened to metal insulation grip sleeve, providing protection to crimp joint. Color coded according to industry standards Internal barrel serrations offer good wire contact and maximum tensile strength.
Dimensions & Features:
| Wire Size: | 12-10 AWG |
| Stud Size: | #10 Stud |
| Color: | Yellow |
| L: | 16.5mm (0.649") |
| B: | 9.5mm (0.374") |
| E: | 13.0mm (0.511") |
| D: | 6.4mm (0.251") |
| D1: | 3.4mm (0.133") |
| D2: | 5.4mm (0.212") |
| Flammability Rating: | UL 94 V-2 |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Nylon |
| Max Electrical Rating: | 600 Volts (105°C) |
| Max Electrical Current: | 48 AMP |
| UL Recognized: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
