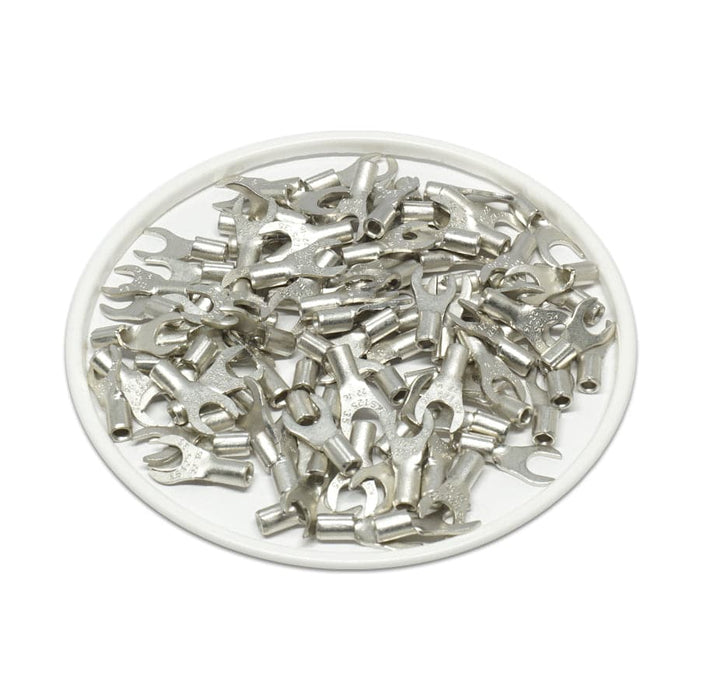

22-16 AWG Non Insulated Fork Terminals, #6 Stud, UL Approved, 100 Pieces - ANB1-37

Original price $8.38 - Original price $8.38
Original price
$8.38
$8.38 - $8.38
Current price $8.38
SKU ANB1-37
Availability:
in stock, ready to be shipped
Piece Quantity: 100 Pieces
true

NON INSULATED FORK TERMINALS

Fork terminals lock in place for tight and secure connection in cramped spaces. They allow the user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations ensure good wire contact and maximum tensile strength.


Dimensions & Features:

Wire Size: 22-16 AWG
Stud Size: #6 Stud
D2: 3.7mm (0.15")
W: 6.6mm (0.26")
F: 6.3mm (0.25")
L: 13.5mm (0.53")
E: 4.8mm (0.19")
D: 3.4mm (0.13")
D1: 1.7mm (0.07")
T: 0.75mm (0.03")
Material: Tin Plated Copper
Seam: Brazed
Electrical Rating: 105°C - 600 Volts
Electrical Current: 18 AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
