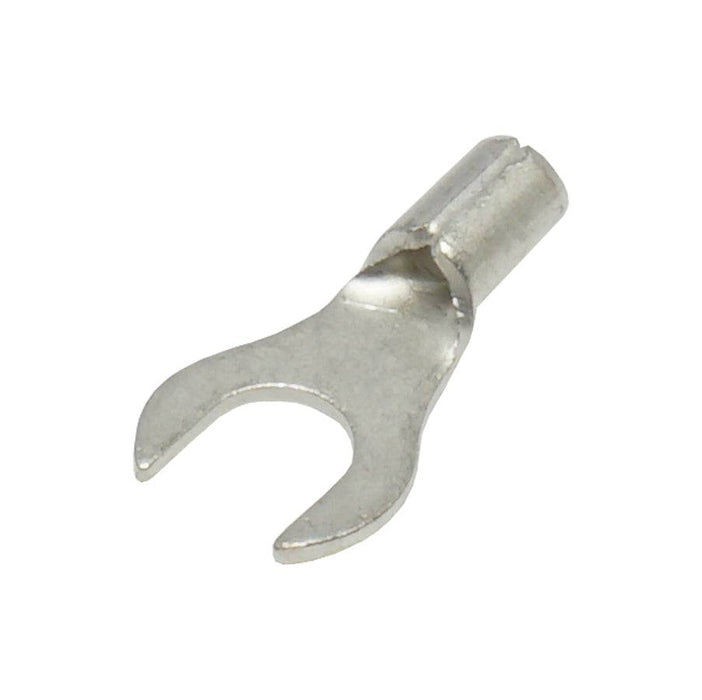

22-16 AWG Non Insulated Fork Terminals, #8 Stud, UL Approved, 100 Pieces - ANB1-4

Original price $10.40 - Original price $10.40
Original price
$10.40
$10.40 - $10.40
Current price $10.40
SKU ANB1-4
Availability:
in stock, ready to be shipped
Piece Quantity: 100 Pieces

NON INSULATED FORK TERMINALS

Fork terminals lock in place for tight and secure connection in cramped spaces. They allow the user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations ensure good wire contact and maximum tensile strength.


Dimensions & Features:

Wire Size: 22-16 AWG
Stud Size: #8 Stud
D2: 4.3mm (0.17")
W: 8.0mm (0.32")
F: 7.0mm (0.28")
L: 14.8mm (0.58")
E: 4.8mm (0.19")
D: 3.4mm (0.13")
D1: 1.7mm (0.07")
T: 0.75mm (0.03")
Material: Tin Plated Copper
Seam: Brazed
Electrical Rating: 105°C - 600 Volts
Electrical Current: 18 AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None
